$ 92.00 $ 99.99
The LOCATOR Overdenture Attachment System features a Core Tool that contains 3 tools in 1. This convenient tool is used to carry and place the LOCATOR Abutment, remove the LOCATOR Male, and insert the male into the LOCATOR Denture Cap. Insert drivers for various types of torque wrenches are available to achieve 30 Ncm of torque.
Cat No: 08393
Sold Out
A Locator abutment retaining sleeve slips onto the abutment driver (part of the Locator Core Tool) to hold the Locator Implant Abutment while delivering it to the implant site by hand.
Pack of 4pcs
Cat No: 08394
$ 55.00

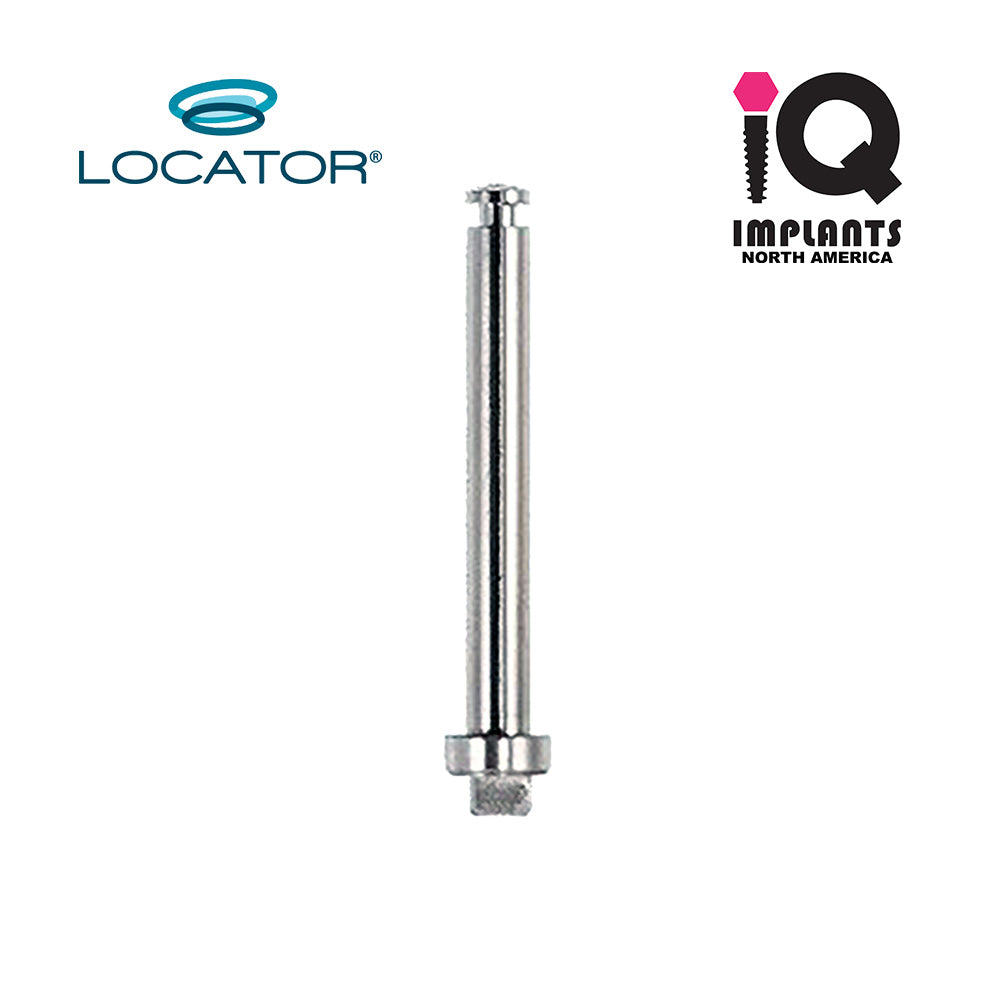

Locator driver go direct from a square drive connection torque wrench to the LOCATOR Implant Abutment. This driver is 15mm long. It allows direct torque tightening of the LOCATOR Implant Abutments. Please note that 20 Ncm is required while optimum seating torque value of 30Ncm will help prevent screw loosening of the LOCATOR Implant Abutment. Made by Zest.
Cat No: 08926
$ 55.00

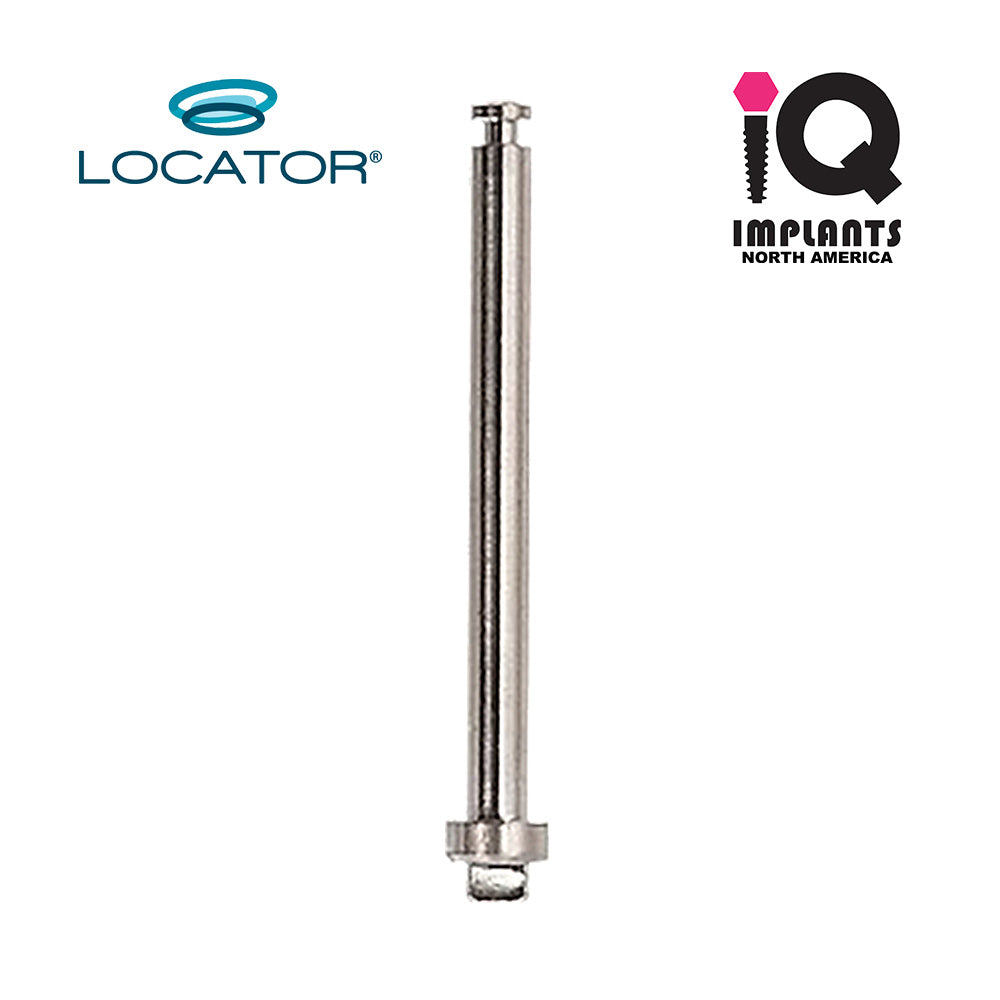

Locator driver go direct from a square drive connection torque wrench to the LOCATOR Implant Abutment. This driver is 21mm long. It allows direct torque tightening of the LOCATOR Implant Abutments. Please note that 20 Ncm is required while optimum seating torque value of 30Ncm will help prevent screw loosening of the LOCATOR Implant Abutment. Made by Zest.
Cat No: 08927
$ 55.00
Locator driver go direct from a latch type low speed drive connection to the LOCATOR Implant Abutment. This driver is 23mm long. It allows direct torque tightening of the LOCATOR Implant Abutments. Please note that 20 Ncm is required while optimum seating torque value of 30Ncm will help prevent screw loosening of the LOCATOR Implant Abutment. Genuine Zest product!
Cat No: 08913
$ 55.00
Locator driver go direct from a latch type low speed drive connection to the LOCATOR Implant Abutment. This driver is 29mm long. It allows direct torque tightening of the LOCATOR Implant Abutments. Please note that 20 Ncm is required while optimum seating torque value of 30Ncm will help prevent screw loosening of the LOCATOR Implant Abutment. Made by Zest.
Cat No: 08914
$ 55.00 $ 61.99
The LOCATOR R-Tx .050/1.25mm Hex driver is intended for use with latch-type torque wrenches. Designed for Locator R-Tx, but suitable for any system calling for 1.25mm hex driver.
Total Length: 28mm (shaft length: 12.7mm)
This product is compatible with torque wrenches from:
3i Implant Innovations
Nobel Biocare
Thommen Medical Wrench
This product is NOT compatible with square driver torque wrenches.
Type: Hex Driver, Latch Type, 1.25mm (0.050")
Pack: 1pc
Cat No: 08008
$ 55.00 $ 61.99
Hand Hex Driver 1.25mm (0.05") for prosthetic components, including Zest Locator R-Tx anchors. This drivers will fit any 4x4 square head wrench. Made in USA by Zest Anchors.
Type: Hand Hex Driver, 1.25mm (0.05")
Total length: 22.6mm
Tip Length: 12.5mm
Cat No: 04936
$ 89.00 $ 100.99

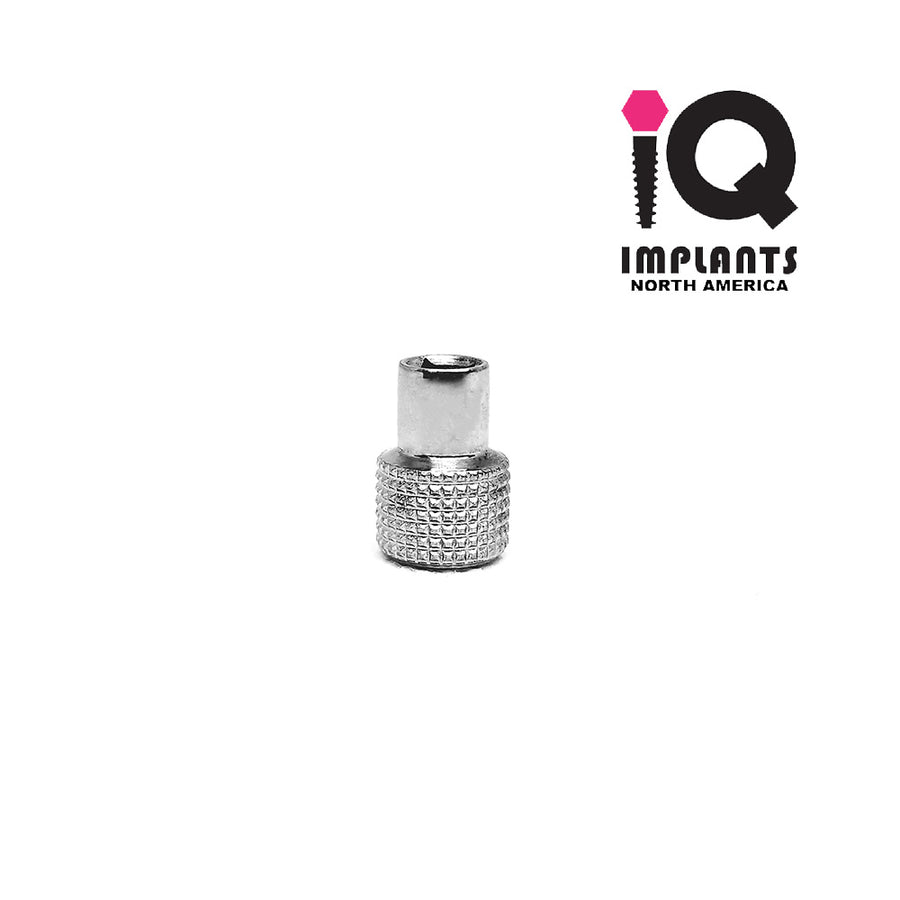

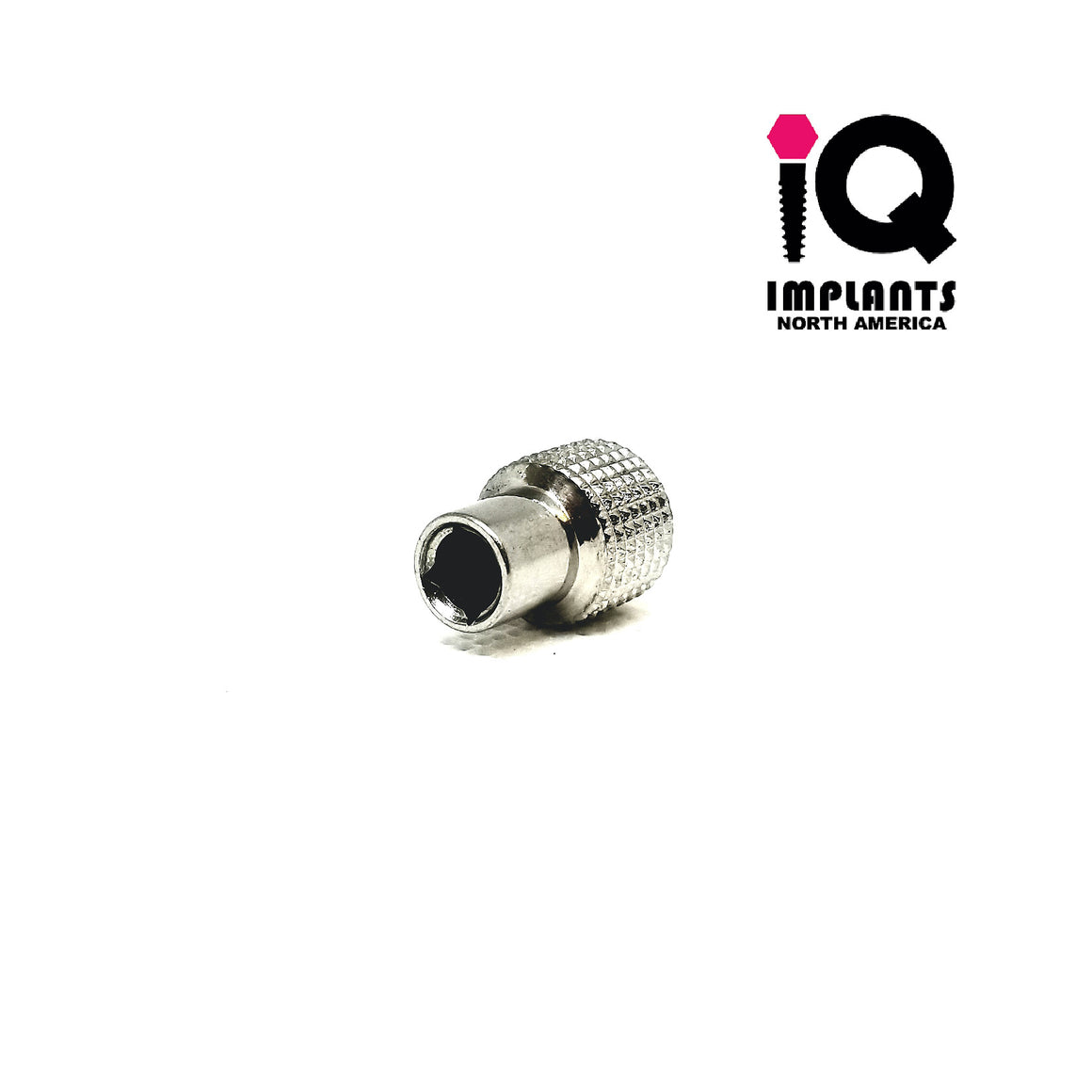

Hand Hex Driver 1.25mm (0.05") for prosthetic components, including Zest Locator R-Tx anchors. This drivers will fit any 4x4 sqaure head wrench. In addition, in comes with the Hand (Thumb) knob, which allows for the driver to be used by hand without the wrench. This knob will accomadate any 4x4 sqaure head drivers. Made in USA by Zest Anchors.
Type: Hand Hex Driver, 1.25mm (0.05")
Tip Length: 6.4mm
Total Length: 16mm
Type: Hand (Thumb) Knob for 4x4 Square top drivers
Pack: 1pc
Cat No: 08007
$ 25.00

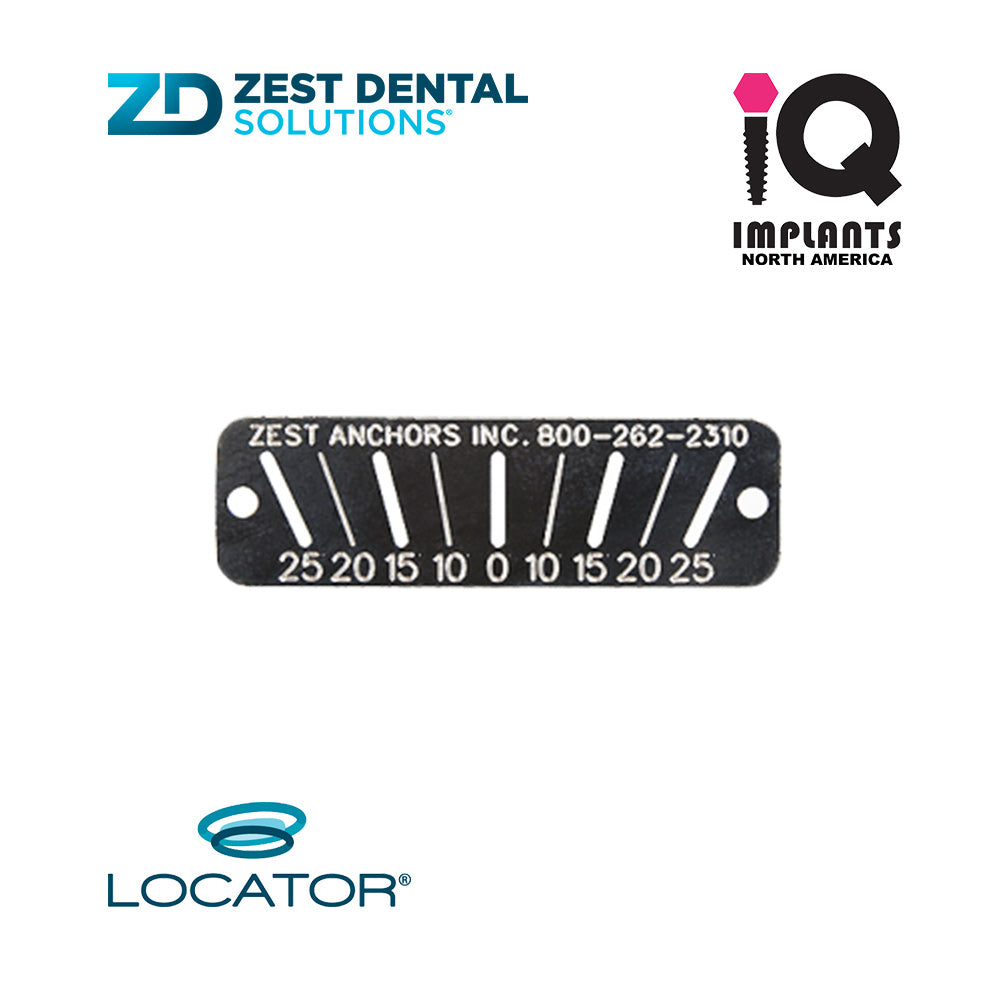

Angle Measurement Guide when using Locator Abutments.
Cat No: 09530
$ 37.00 $ 39.99
Designed as a replacement for a Caps Removal End of a Locator Core Tool. This mail removal tip has a pointy end useful for gripping and removing retainers of the metal caps incorporated in the overdenture. THIS TIP REQUIRES LOCATOR CORE TOOL (Cat No 08393) to work.
System: Zest LOCATOR® Original
Type: Replacement tip for a Locator Core Tool
Package: 1pcs
Cat No: 08397
NOTE: This is a SPECIAL ORDER item. We usually fulfill special orders within 1 week.
$ 72.00
This exclusive and unique Essential tool specifically designed for insertion and removal of the retention caps into/from metal housings in dentures. Simplifies process and prevents damage to the delicate caps.
This tool could be used on various sizes of caps manufactured by most popular brands. Featuring dual 2.5mm tips for caps with and without middle pin along with proprietary caps removal tip. This is only tool of its kind to cover world's most popular overdenture systems.
Approved for use on the following systems:
-IQ-Ball Abutments System
-Mini implants with 2.5mm Ball
-IQ-Equator/OD Secure and all compatible systems
-Zest Classic Locator Legacy Standard and Extended Caps!
-Zest Locator R-Tx
Package: 1pc
Cat No: 0488EIP-IQ
$ 68.00
Type: Tool O-Ring Insertion for Micro and Standard O-Rings
Pack: 1pc
Cat No: 08049-SB
Genuine Zest O-Ring Insertion Tool for Standard (2.25mm) and Micro (1.8mm) O-rings. Could be used on O-Rings of the same diamters manufactured by other brands and systems used in Ball Abutments and Mini Implants.
Sold Out
Cuff Height Measuring Tool determines exactly the height of the transmucosal route for any implant system with any connection, internal or external.
Simple to use, counting on the colors that determine and correspond to the different heights, this instrument measures the height of the tissue precisely from 0.5 to 7 mm. The kit contains a height indicator with rotating plate, a fixed rod height indicator with disposable silicone ring and a dispenser with 20 spare rings.
Instruction of Use:
• Keep the rotating plate completely unscrewed on the opposite side of the pivot.
• Insert the pivot into the system, make sure that it rests well on the base of the system.
• Hold the pivot firmly in place and turn the rotating plate clockwise until it touches the crest.
• Remove the measurer, look at corresponding color-ring to the position of the plate to determine the height.
• The height is measured in millimeters
• When a colored ring is completely covered, it is preferable to consider the color and the height immediately above.
Cat No: 008MBG-IQ
$ 95.00 $ 99.99
Torque Indicating Ratchet Wrench replacement Insert
Cat No: 07463-M
$ 350.00 $ 424.99
The Torque Indicating Ratchet Wrench is a 70 Ncm 4x4 square connection torque wrench and used for the final surgical placement. Perfect for Locators or LODI's. Since It will allow to be torqued up to 70 NCM to bone level, this wrench is suitable for placement of any components that require torque..
Torque Indicating Ratchet Wrench is compatible with the following partial drivers list:
This wrench is made by ELOS Medtech and has become an industry standard for many brands, such as Zest, Nobel and many others. Made of high quality and precision.
Package includes: Torque Indicating Ratchet Wrench and thumb knob (SKU: 07463-M)
Cat No: 07362-SB
$ 55.99
Locator Attachment 15mm driver for Straumann 35Ncm Torque Wrench.
This is original Zest Anchors product
Cat No: 08260-SB
$ 55.99
Locator Attachment 21mm driver for Straumann 35Ncm Torque Wrench.
This is the original Zest Anchors product.
Cat No: 08280-SB
$ 199.99 $ 292.99
The wrench and Thumb Knob could be used with any square top 4x4 drivers, making it a perfect set for restoration work. Please check our wide selection of drivers.
Cat No: 09020-M
