$ 29.00

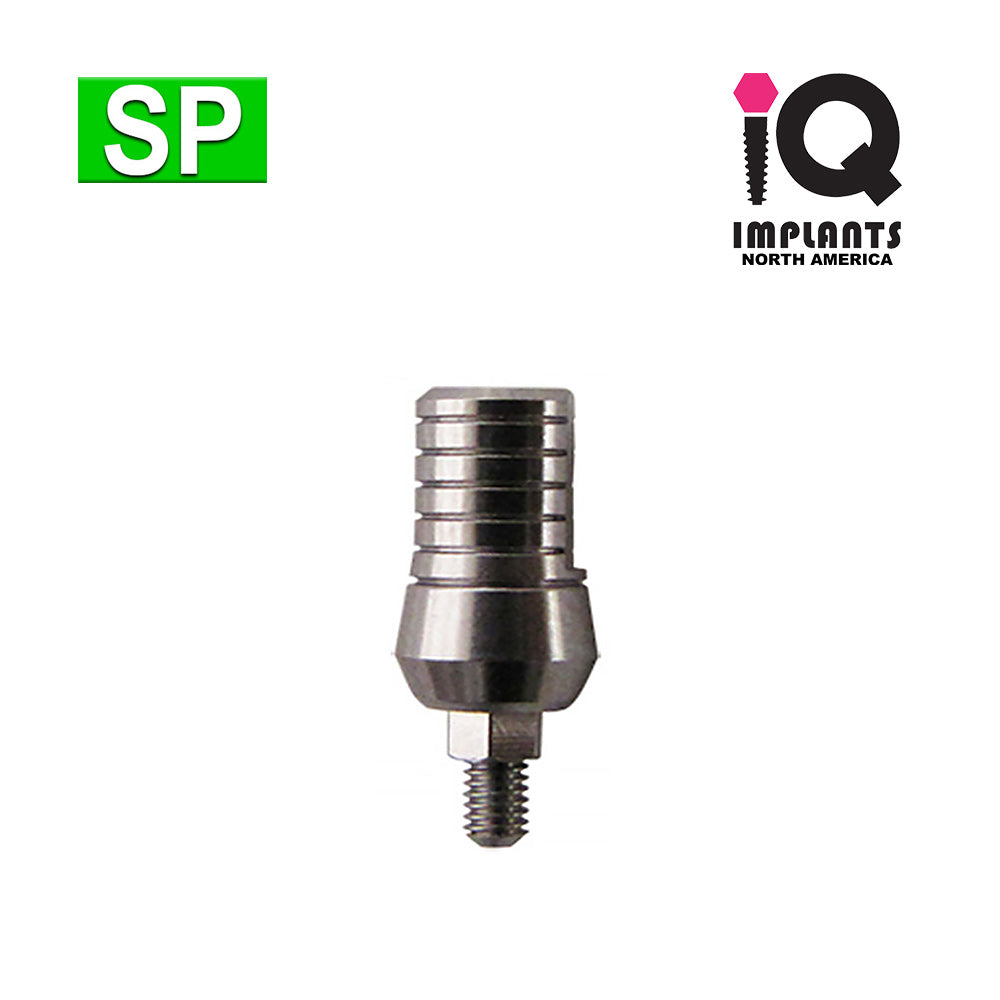

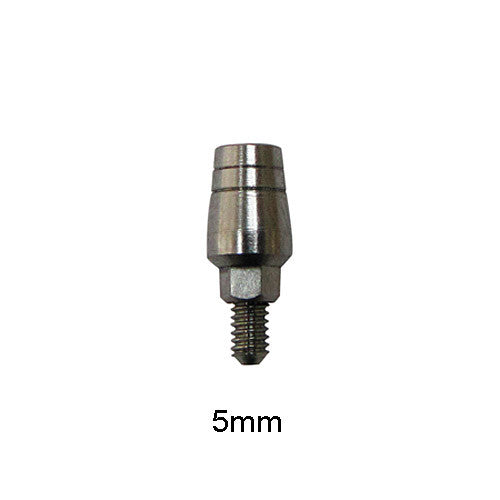

Straight Titanium Abutment for dental implants, compatible with internal hex or regular prosthetic platform of 3.75-3.80mm.
These abutments have a width of 4.7mm.
Available sizes: 5, 7, 9, 11, 13 and 15mm.
Each abutment comes packaged with a titanium fixation screw.
| Cat No. | Height, mm |
| 3005 | 5 |
| 3007 | 7 |
| 3009 | 9 |
| 3011 | 11 |
| 3013 | 13 |
| 3015 | 15 |
$ 29.00

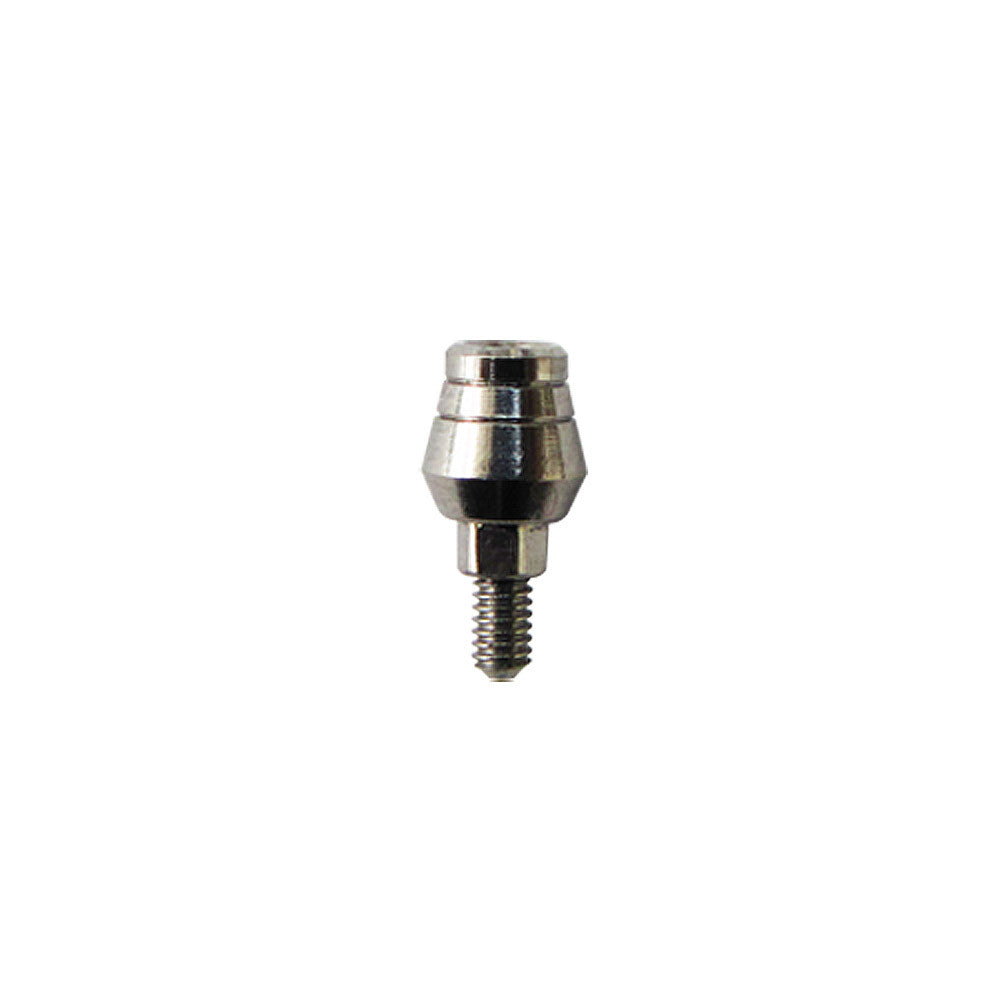

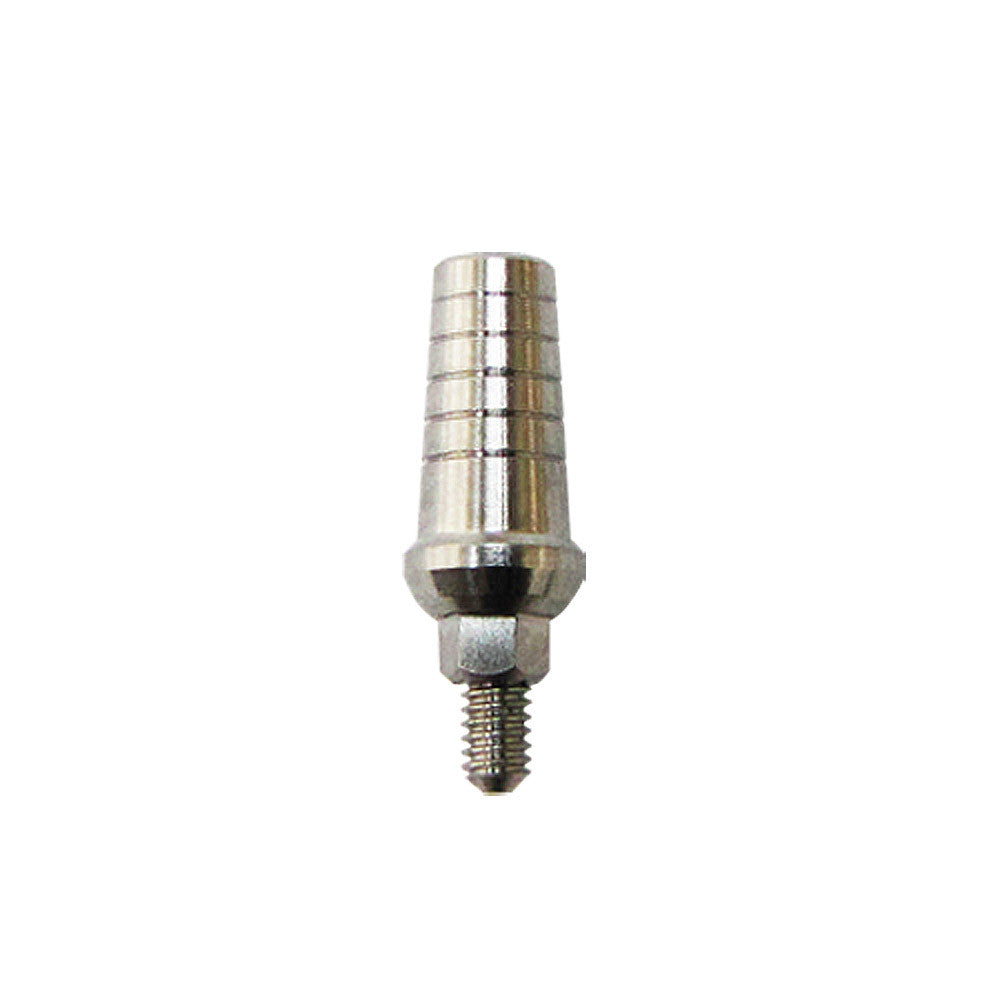

Shouldered titanium abutment for dental implants with internal hex.
Prefabricated chamfer ensures perfect fit for casted copings.
Come with fixation titanium screw.
Compatible with all dental implants with internal hex and regular prosthetic platform.

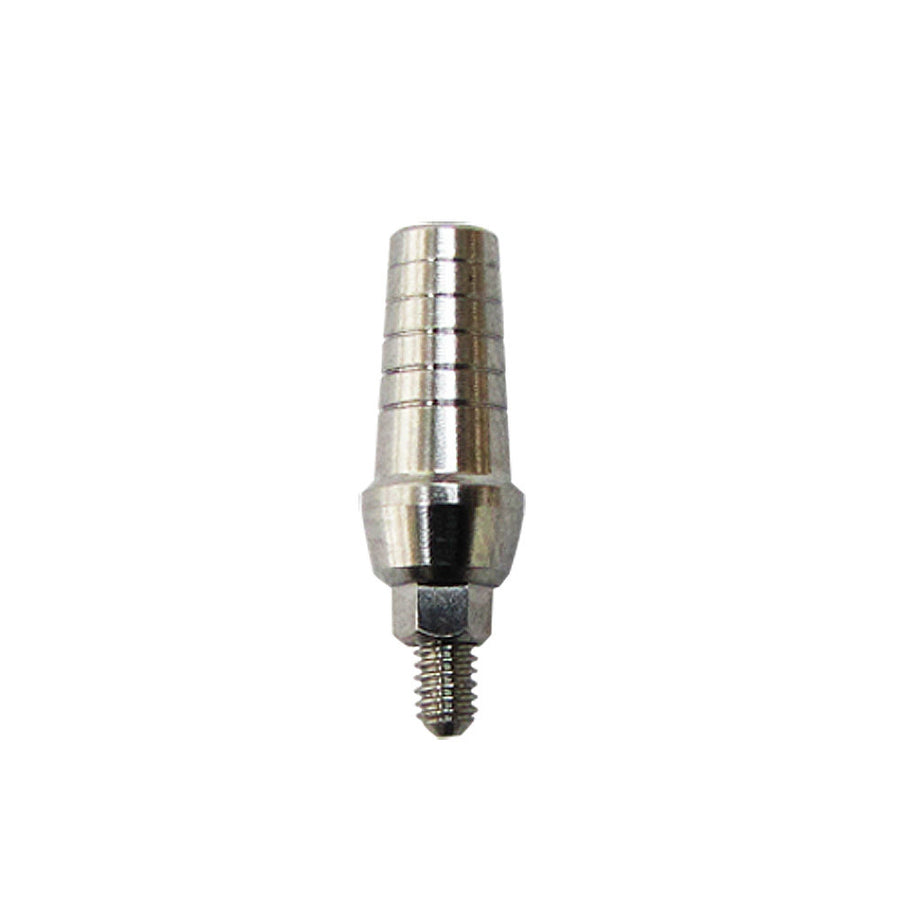

Straight Shouldered Titanium Abutment for dental implants, compatible with internal hex or regular prosthetic platform of 3.75 - 3.80mm.
Available in 4 gingiva heights: 1mm, 2mm, 3mm and 4mm.
These abutments have a width of 4.7mm.
Prefabricated chamfer ensures perfect fit for casted copings. Each abutment comes packaged with a titanium fixation screw.
| Cat No. | Height |
| 3031 | 1mm |
| 3032 | 2mm |
| 3033 | 3mm |
| 3034 | 4mm |
$ 29.00

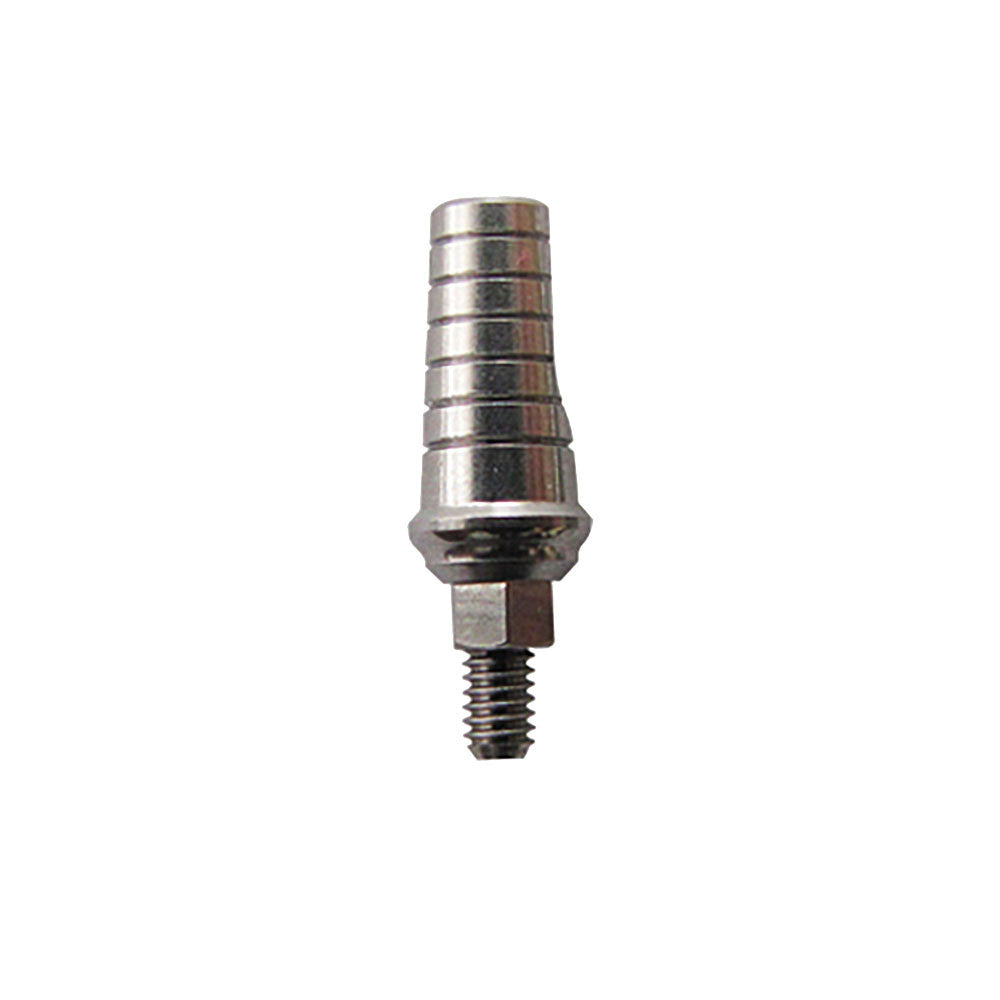

Contour Straight Shouldered Titanium Abutment for dental implants.
Available in 4 gingiva heights: 1mm, 2mm, 3mm and 4mm. These abutments have a width of 4.7mm. Prefabricated chamfer ensures perfect fit for casted copings. Each abutment comes packaged with a titanium fixation screw. Compatible with internal hex or regular prosthetic platform of 3.75-3.80mm.
| Cat No: | Cuff Size |
| 3031R | 1mm |
| 3032R | 2mm |
| 3033R | 3mm |
| 3034R | 4mm |
$ 29.00
Slim straight titanium abutments for dental Implants with internal Hex.
These abutments have width of 3.8mm. Slim (narrow) abutments are especially useful when space is limited.
Each abutment comes packaged with fixation screw.
Available sizes: 5, 7, 9 and 11mm.
| Cat No: | Length |
| 3025 | 5mm |
| 3027 | 7mm |
| 3029 | 9mm |
| 3021 | 11mm |
$ 39.00 $ 44.00

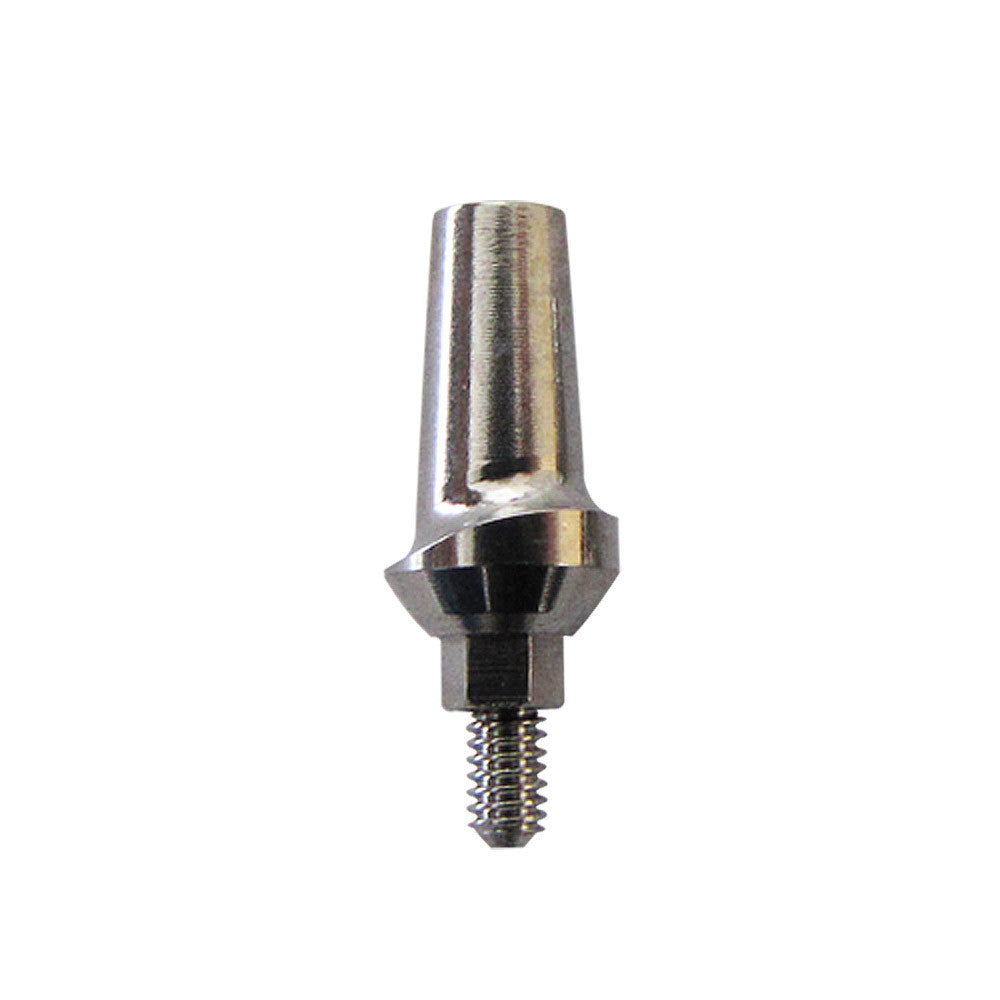

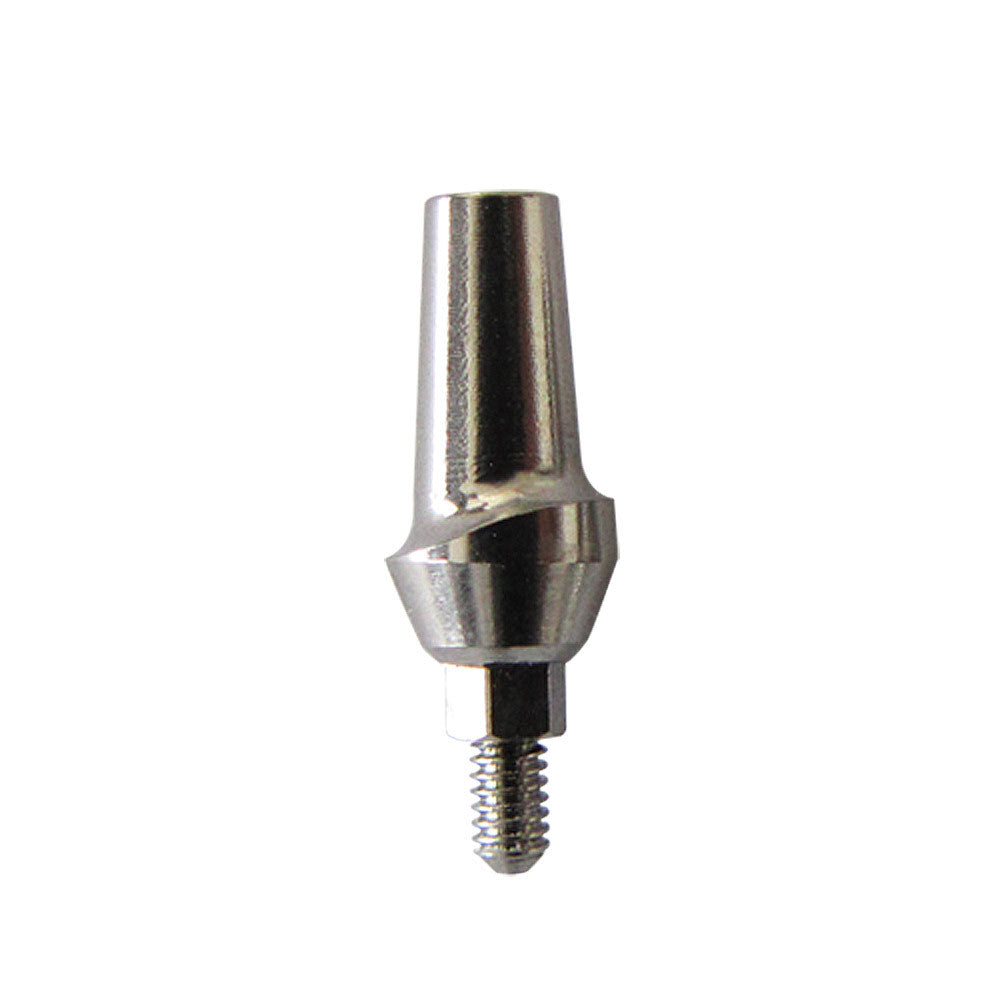

Straight Anatomic Shouldered Titanium Abutment for dental implants, compatible with internal hex or regular prosthetic platform of 3.75-3.80mm.
Available in 3 heights of the cuff on the buccal side: 1 mm, 2mm and 3 mm. Lingual height is more coronal than the buccal height. These abutments have a width 4.7mm.
Each abutment comes packaged with a titanium fixation screw.
| Cat No | Height |
| 3041 | 1mm |
| 3042 | 2mm |
| 3043 | 3mm |
$ 39.00 $ 44.00
Cosmetic Titanium Abutment in Gold Hue for Dental Implants with Internal Hex and Standard Prosthetic platform (SP).
Available in 4 gingiva heights: 1mm, 2mm, 3mm and 4mm. These abutments have a width of 4.7mm, milled from a solid titanium alloy and finished in a gold anodizing color. Prefabricated chamfer ensures perfect fit for casted copings. Each abutment comes packaged with a titanium fixation screw. Compatible with internal hex or regular prosthetic platform of 3.5-3.80mm.
Gold colored abutments work best when used in conjunction with porcelain crowns because it will tend to look like a more natural tooth color with this combination. Gold shade gives a worm appearance to the final implant crown. This abutments are ideal for cosmetically challenging cases.
$ 29.00

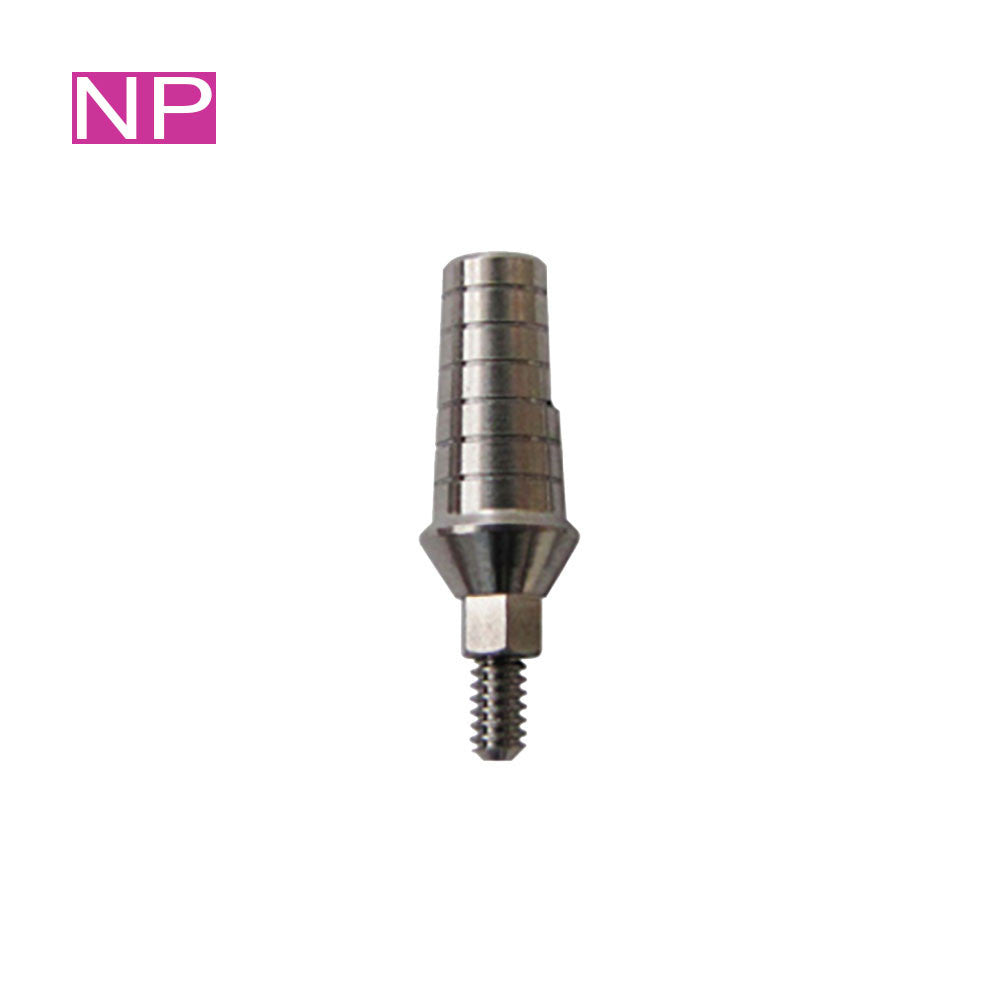

Shouldered titanium abutment for dental implants with internal hex and narrow 3.0mm prosthetic platform..
Prefabricated chamfer ensures perfect fit for casted copings.
Come with fixation titanium screw.
Compatible with all dental implants with internal hex and narrow 3.0mm prosthetic platform.
Available in 4 gingiva heights: 1mm, 2mm, 3mm and 4mm.
| Cat No. | Height |
| 3031-30 | 1mm |
| 3032-30 | 2mm |
| 3033-30 | 3mm |
| 3034-30 | 4mm |
$ 29.00

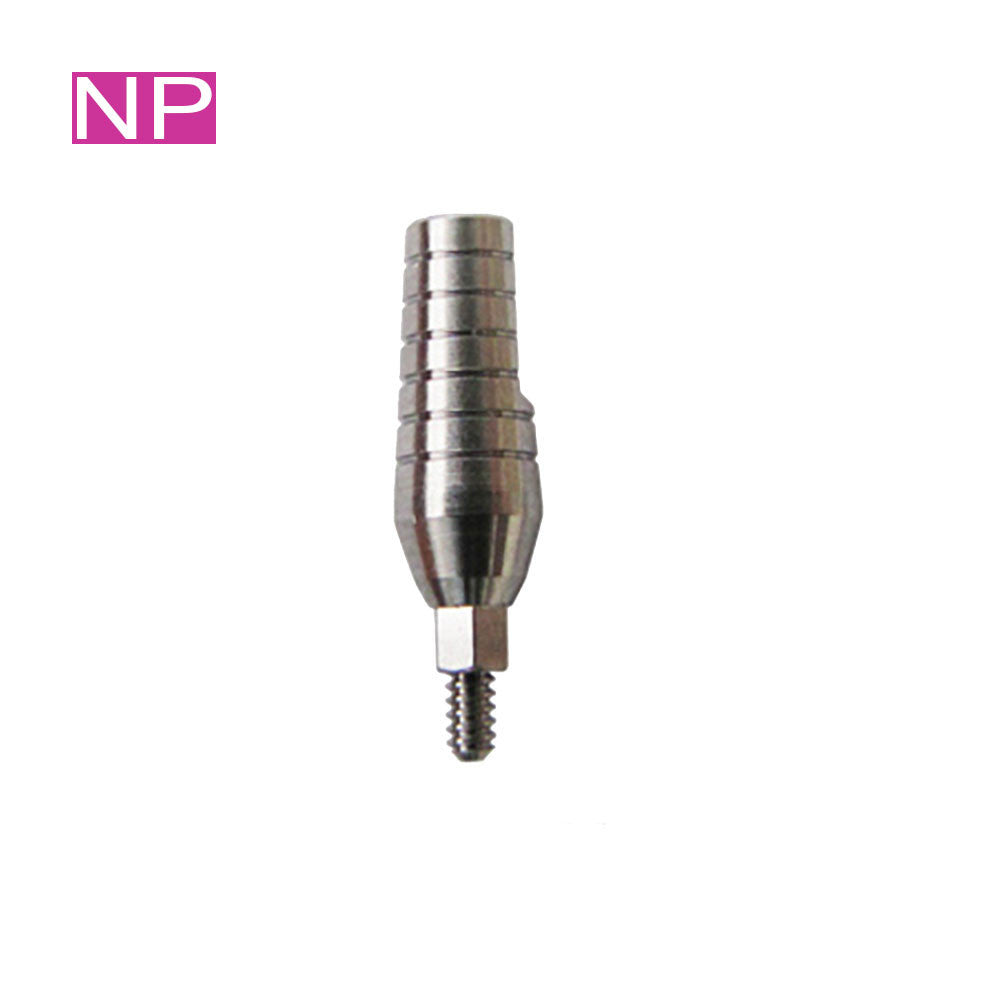

Straight Titanium Abutment for dental implants with Narrow 3.0mm prosthetic platform. This abutment is 9mm tall.
Each abutment comes packaged with a titanium fixation screw.
Cat No: 3009-30
$ 90.00
Titanium Fixation screw for restoration abutments.
Length Overall: 8.3mm
Material: Titanium Ti-6Al-4V (ELI Grade 5)
Fits Standard Internal Hex Platform of 3.5-3.8mm and Wide Platform of 4.5mm. Compatible to any other brands utilizing standard or wide internal hex platform within those parameters.
Pack: 10pcs
Cat No: 3000-9
$ 32.00
Wide (5.5mm) Straight Titanium Abutment 9 mm long for Dental Implants with Internal Hex .
All the abutments come with fixation titanium screw.
Compatible with all dental implants with internal hex and standard prosthetic platform of 3.75 - 3.80mm.
Cat No: 3009W
$ 299.00

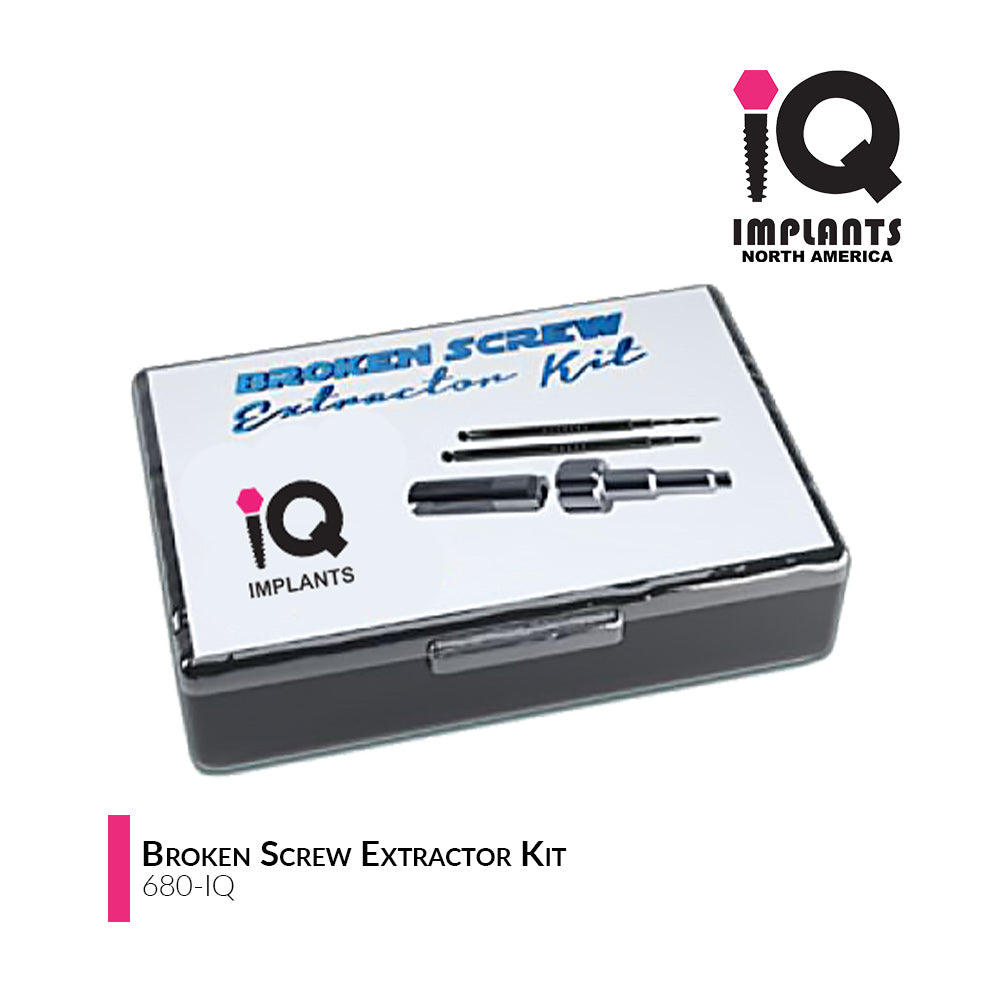

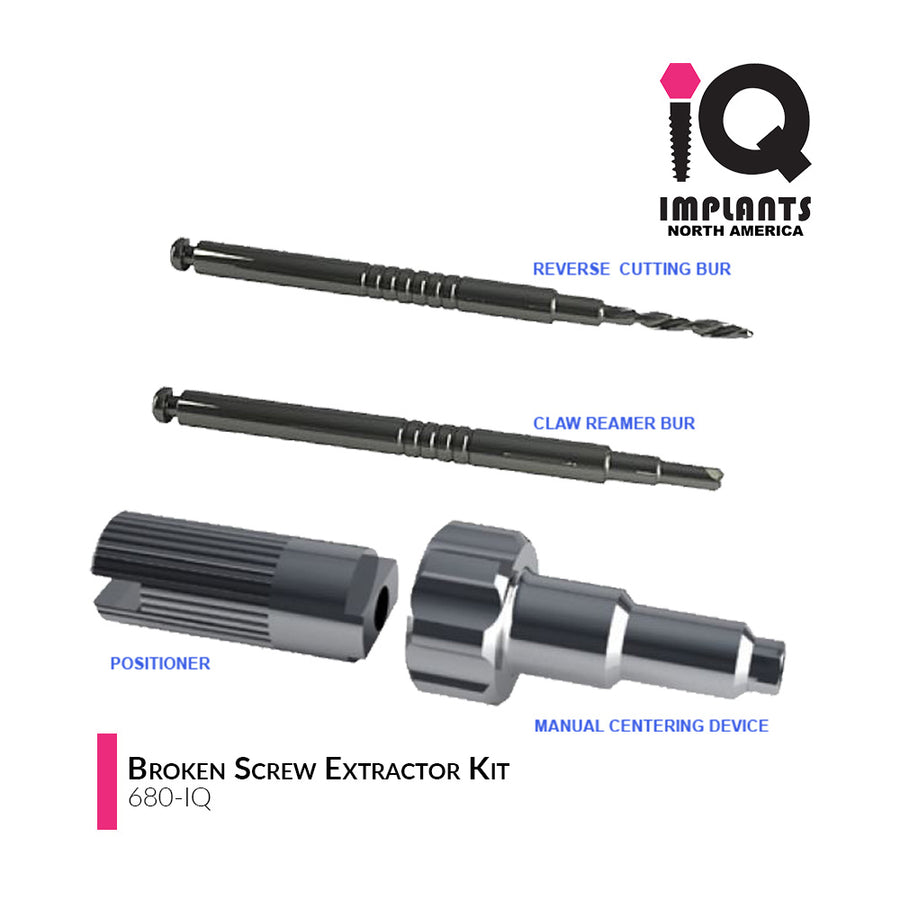

Product: Broken Screw Extractor Kit
Includes:
1 Manual Centering Device
1 Positioner
1 Claw Reamer Bur
4 Reverse Cutting Bur
Cat No: 680-IQ
With Broken Screw Extractor Kit it is possible to remove a broken screw from an implant if it has not been bonded or damaged during previous attempts to remove it.
The extractor kit includes two types of burs; a claw reamer bur and reverse cutting bur. In addition, the kit includes manual centering devices to hold the burs in place during the procedure. In 90% of cases, the broken screw can be removed easily with the claw reamer bur. However if the broken screw is firmly stucked inside the implant, the reverse cutting bur must be used.
Designed in close cooperation with Rhein83, this kit will work with IQ Implants, Zimmer and all internal hex compatibles.
