$ 39.00
$ 39.00
$ 49.00
$ 29.00

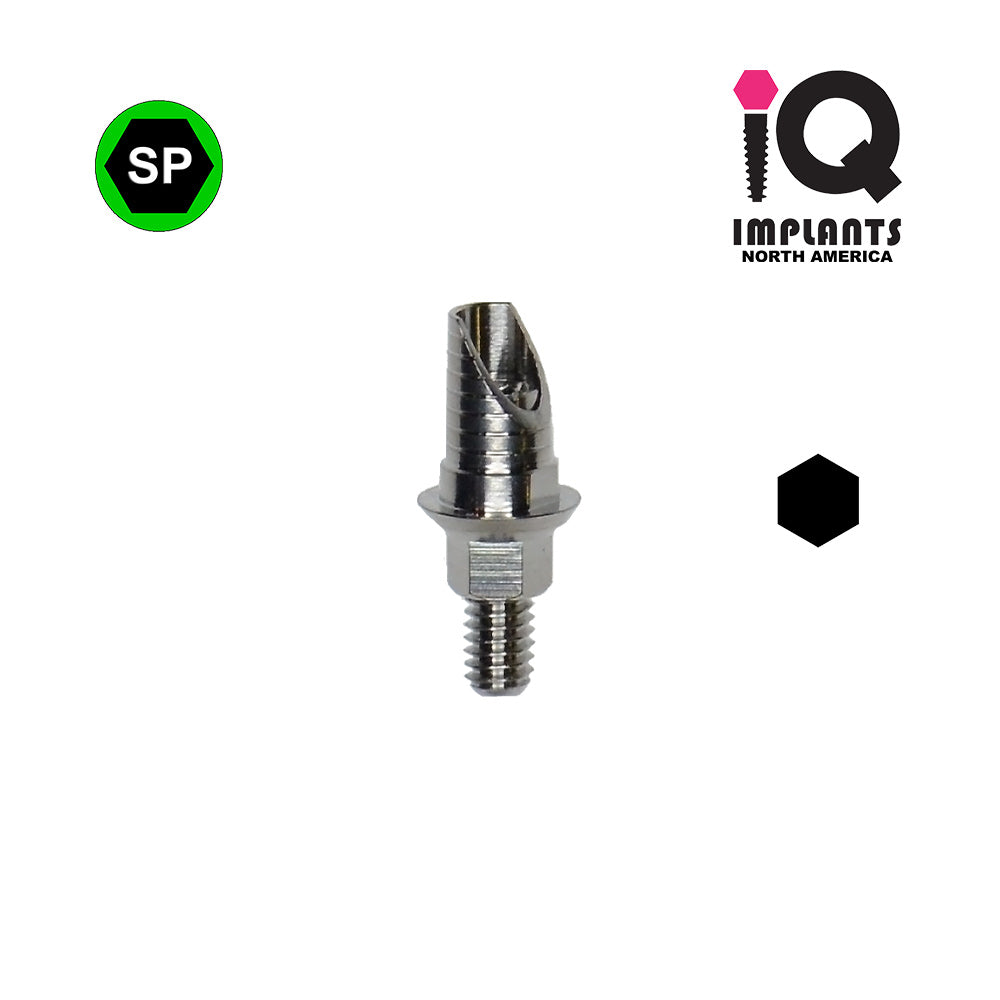

Ti-Base CAD/CAM Interface with Hex (anti-rotational). Internal Hex connection for IQ Implants 3.5/3.75 prosthetic platform and compatibles (SP)
Titanium Titanium Fixation Screw is included.
Material: TI6AL4V ELI (Grade 5)
Cat No: 3511
$ 29.00

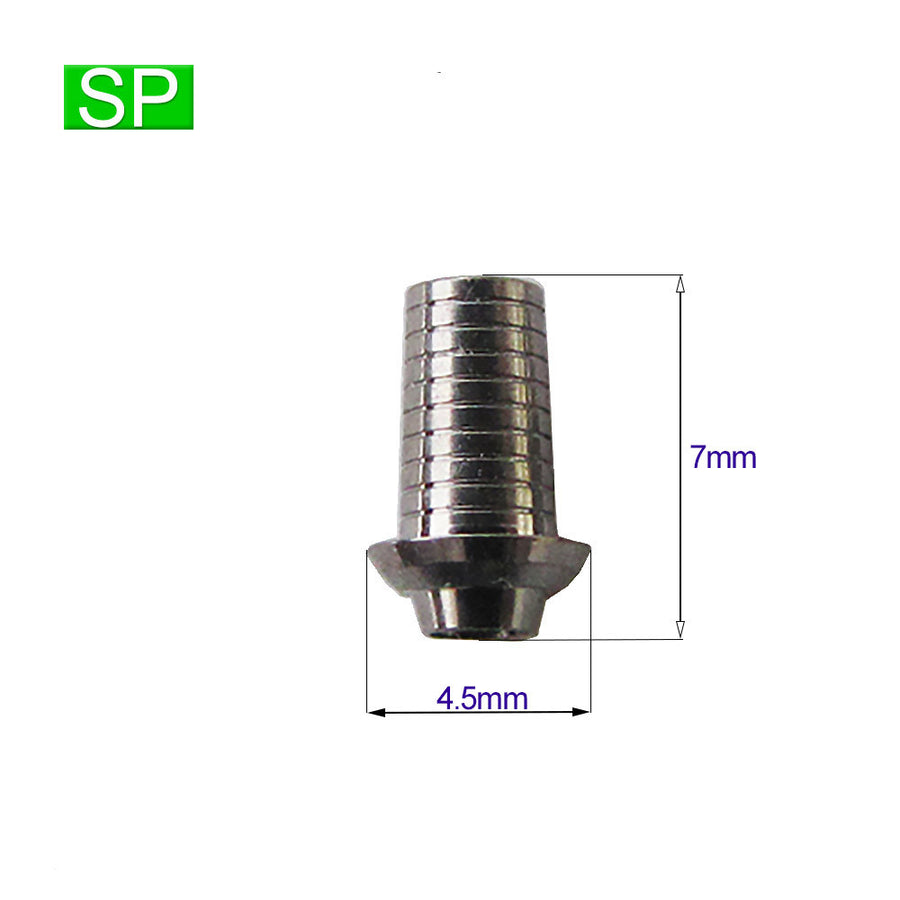

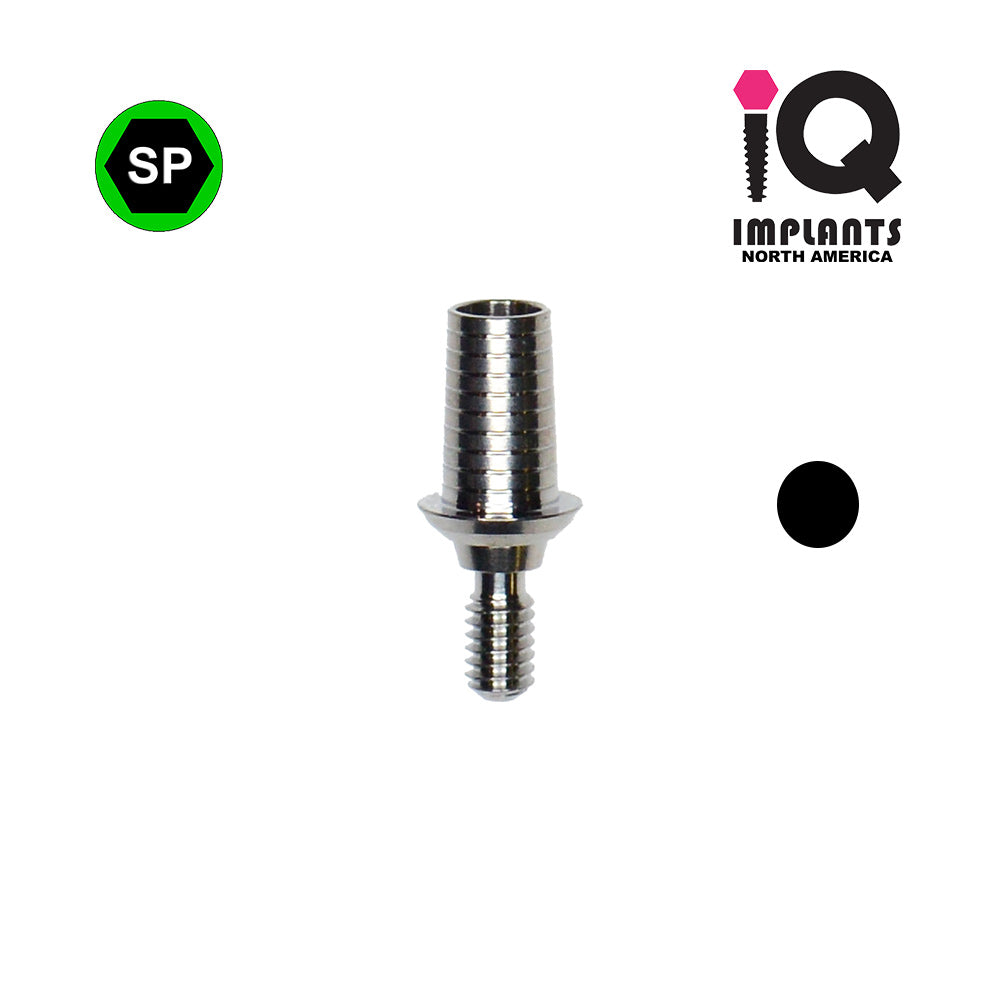

Ti-Base CAD/CAM Interface without Hex (Rotational). Internal Hex connection for 3.5/75mm Platform of IQ Implants and Compatibles, SP.
Titanium Titanium Fixation Screw is included.
Material: TI6AL4V ELI (Grade 5).
Cat No: 3512
$ 40.00

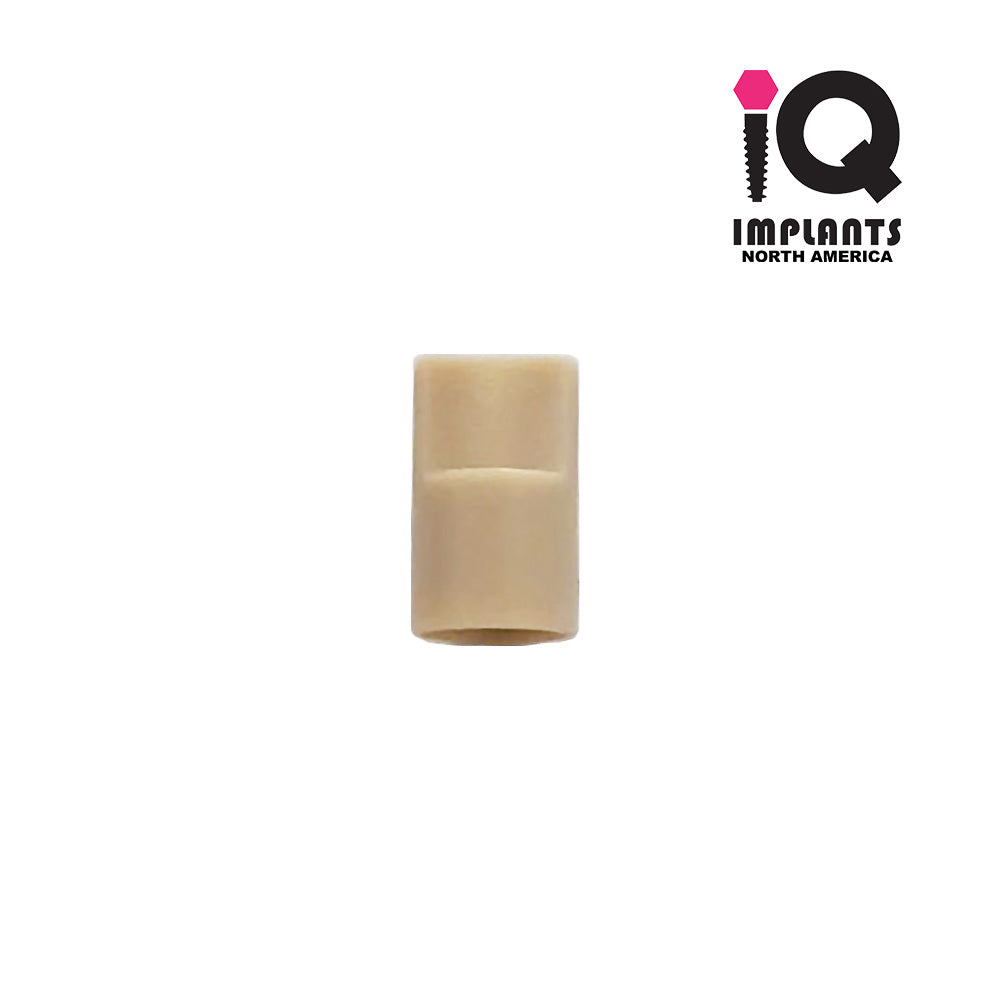

Scan Body Adapter for our IQ Solid Multi-Unit system.
Cat No: 3609
$ 36.00

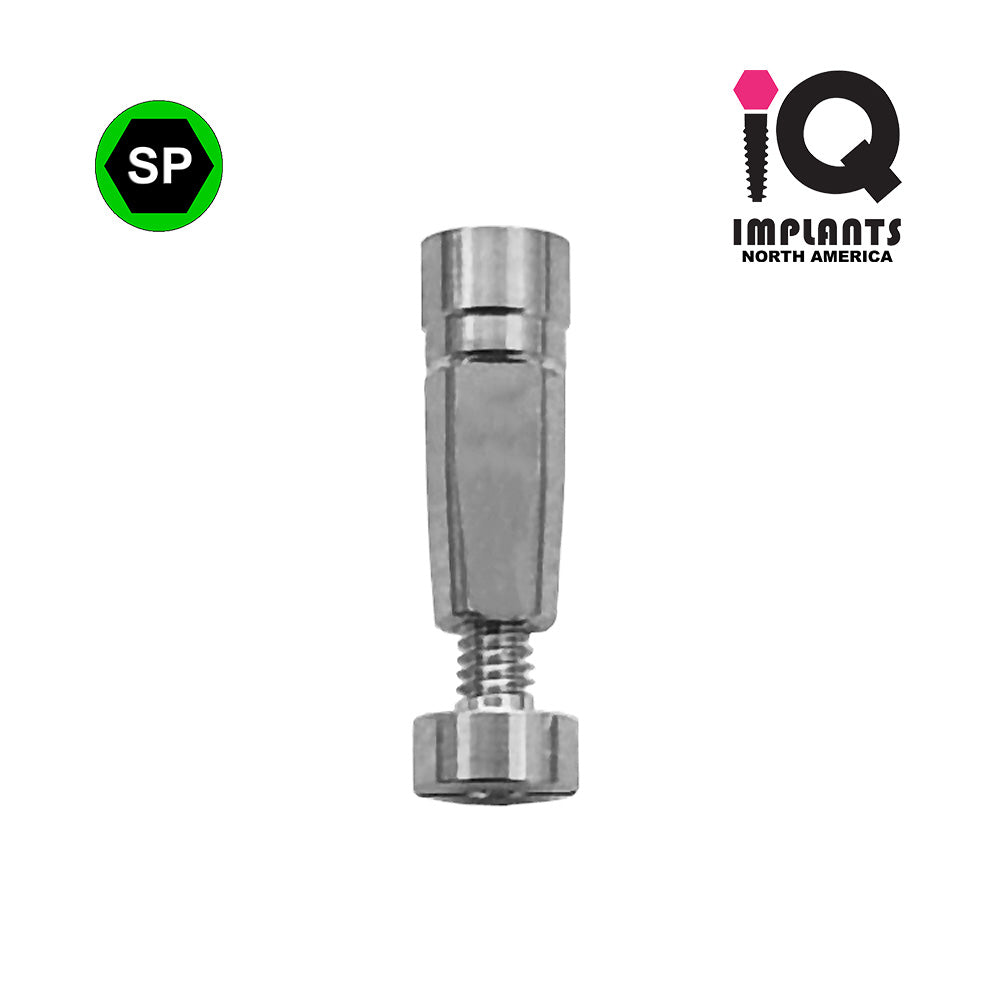

Digital analog for CAD/CAM. Standard Prosthectic platfomr of 3.75mm (SP)
Cat No: 3611
$ 32.00
T-Base CAD/CAM for Multi-unit. Titanium screw is included.
Cat No: 3610
$ 35.00

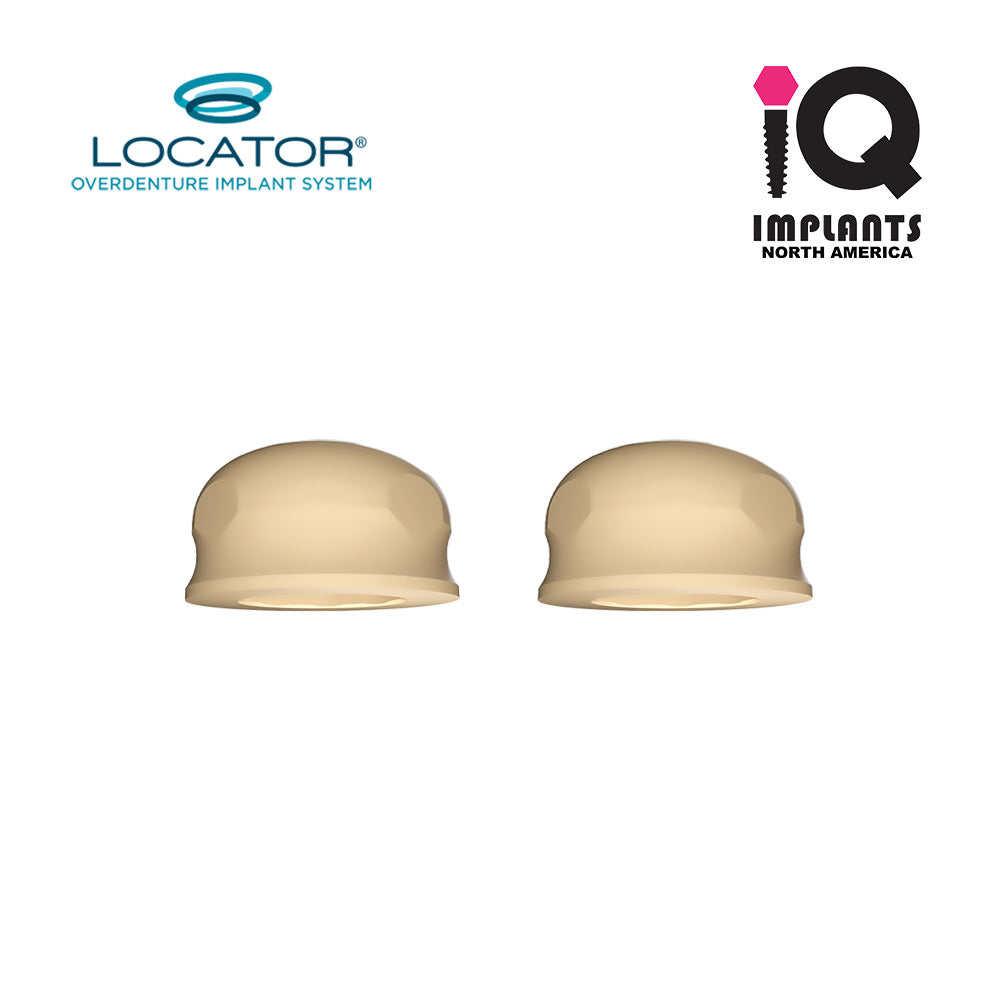

System: Zest Locator® Legacy
Type: Scan Body
Packaging: 2 Pack
Cat No: 09260-2
LOCATOR® Scan Bodies can simplify your overdenture cases in combination with a digital workflow. They can be used intraorally or in a lab setting, saving time and improving efficiency in the digital process by accurately capturing the precise location of the LOCATOR. The scan bodies are designed with the exact dimensions and undercut needed for the LOCATOR Prosthesys Attachment Housings further improving the workflow of 3D printed dentures. Can be used for Locator Original and Locator Fixed systems.
$ 59.00 $ 60.99
System: Zest Locator® Legacy
Type: Scan Body
Packaging: 4 Pack
Cat No: 09260-4
LOCATOR® Scan Bodies can simplify your overdenture cases in combination with a digital workflow. They can be used intraorally or in a lab setting, saving time and improving efficiency in the digital process by accurately capturing the precise location of the LOCATOR and implant. The scan bodies are designed with the exact dimensions and undercut needed for the LOCATOR Denture Attachment Housings further improving the workflow of 3D printed dentures.
$ 59.00 $ 60.99
System: Zest LOCATOR R-TX®
Type: Scan Body
Package: 4-Pack
Cat No: 30060-01-4-SB
$ 2,549.00 $ 2,900.00
We started from a scratch designing a kit that could abolish dependency on specific overpriced systems, while simplifying the whole process of the guided surgery.
Presenting The Guided Surgery Kit designed to be universally compatible with most implant systems. Featuring 25 specially constructed high precision drills in addition to Pilot Drill, Tissue Punch, Bone Crest Flattening Drill and beautifully constructed compact autoclavable cassette.
The kit uses only 1 (one) size sleeves of ID-5.1mm/OD-5.9mm (sold separately), which could be installed in any surgical guide with 6mm holes, suitable for most current bone-level implant systems. The magic is in its simplicity - any dentist, any lab and for any implants system. This kit is designed for implants up to 4.5mm in diameter. Could be upgraded at any time with a set of 5 drills to increase allowable implants diameters to 5.0mm.
The Guided Surgical Kit consists of the following components:
| 5 Guided Drills Set 2.00mm | Stops at 6, 8, 10, 11.5 ,13mm |
| 5 Guided Drills Set 2.80mm | Stops at 6, 8, 10, 11.5 ,13mm |
| 5 Guided Drills Set 3.20mm | Stops at 6, 8, 10, 11.5 ,13mm |
| 5 Guided Drills Set 3.65mm | Stops at 6, 8, 10, 11.5 ,13mm |
| 5 Guided Drills Set 4.00mm | Stops at 6, 8, 10, 11.5, 13mm |
| 1 Bone Crest Flattening Bur | 5.0mm Diameter |
| 1 Tissue Punch | 5.0mm Diameter |
| 1 Pilot Drill | 1.5mm Diameter |
| 1 Guided Kit Cassette | |
| OPTIONAL | sold separately |
| 5 Guided Drills Set 4.50mm | Stops at 6, 8, 10, 11.5, 13mm |
Cat No: 1120K
$ 12.00

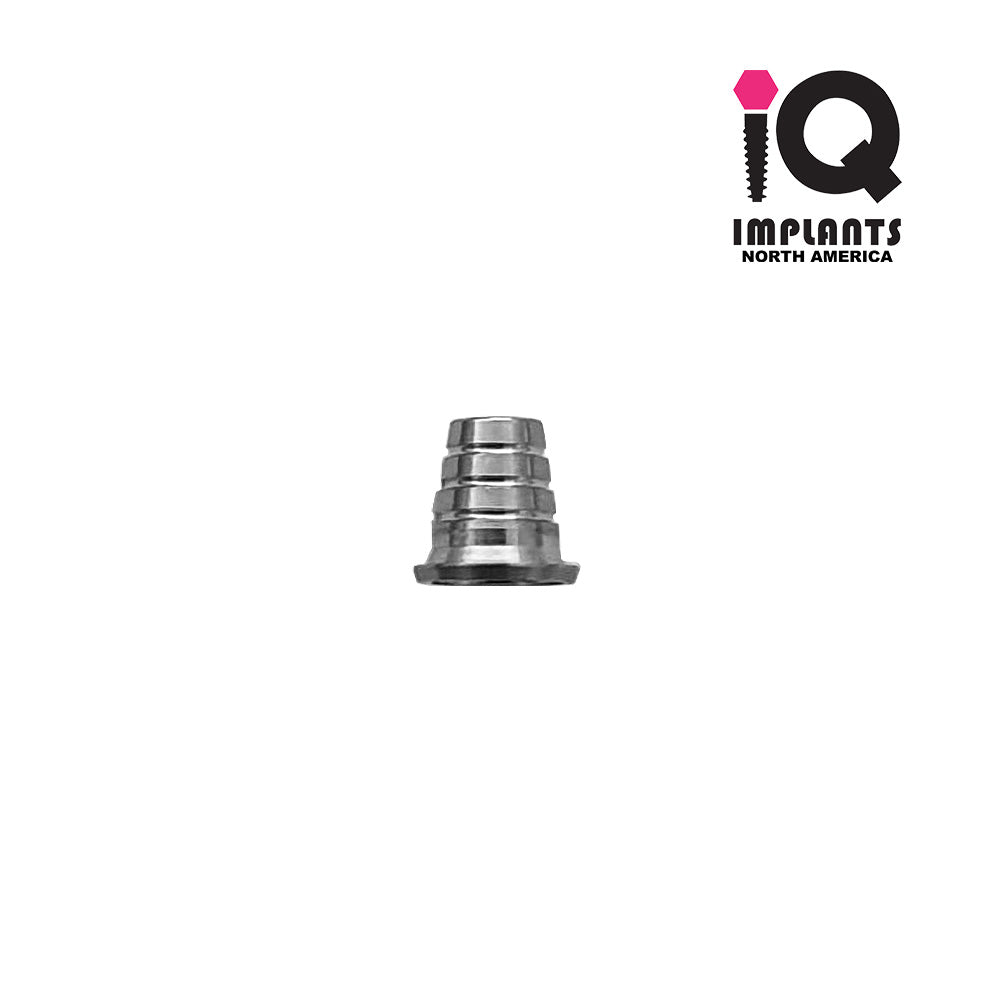

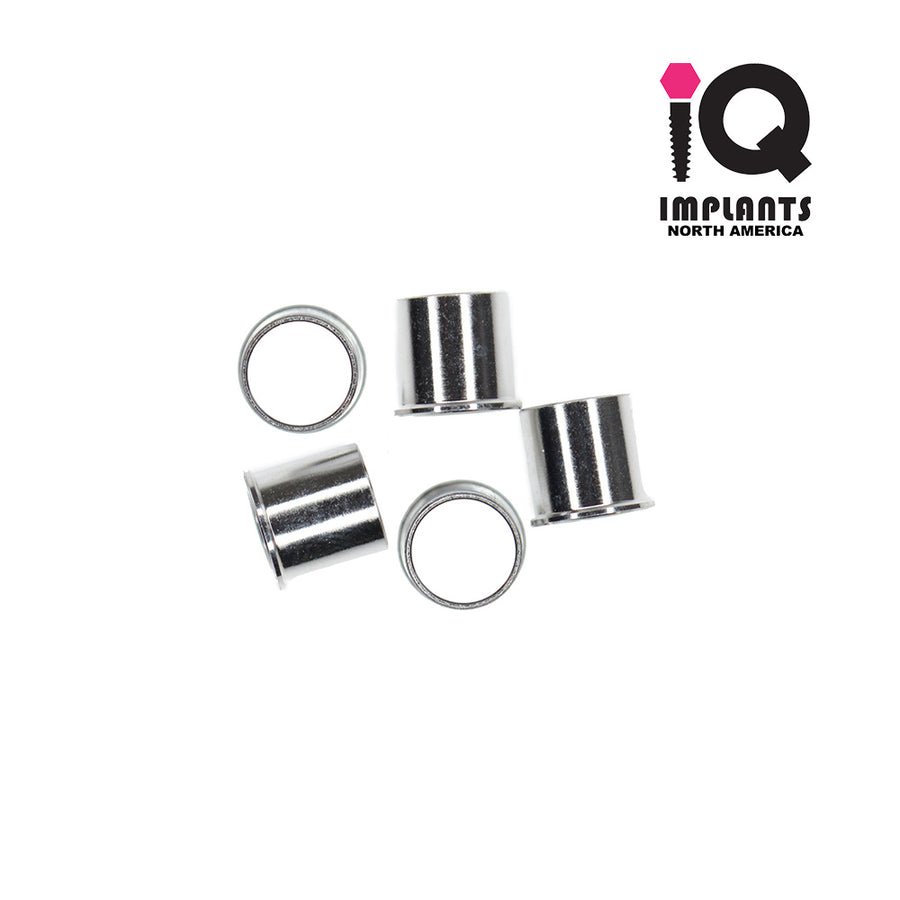

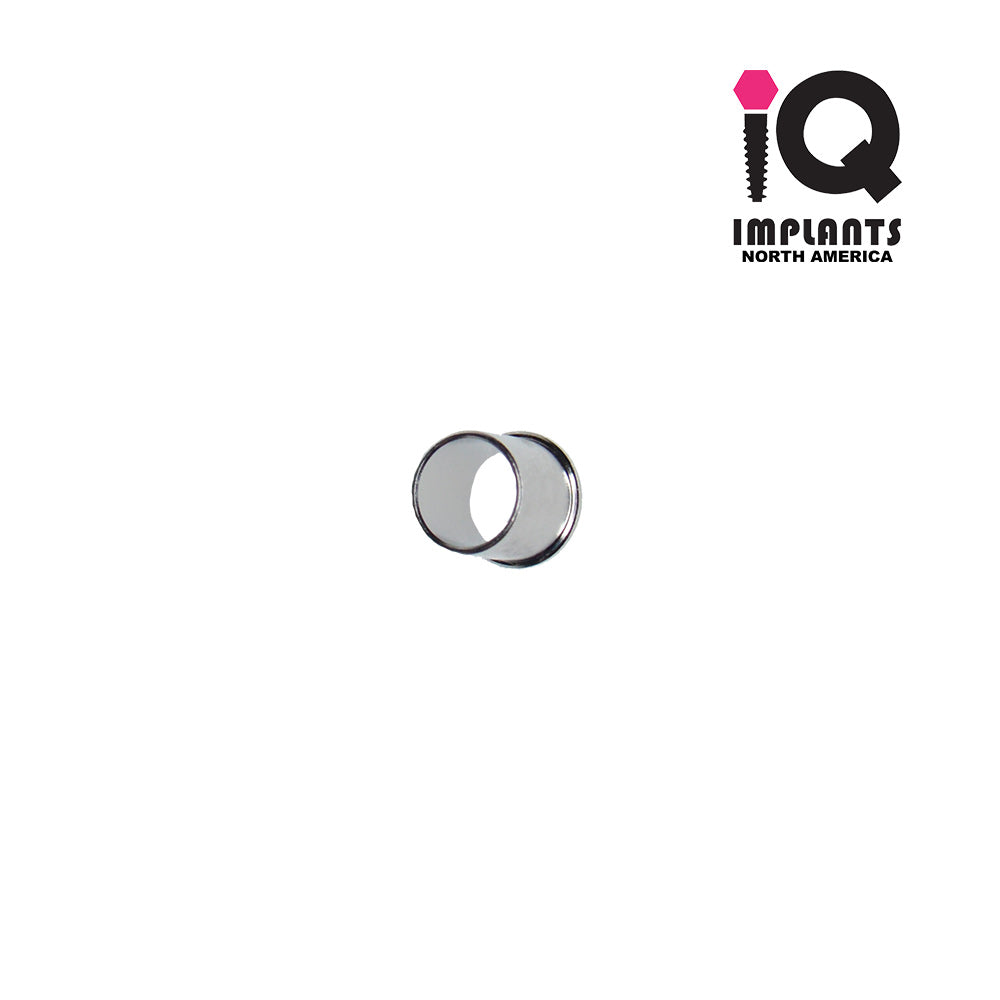

Sleeve for our Guided Surgery Kit. This is the only sleeve size needed for any printed guide and will require 6.00mmD hole for each implant. It is designed to allow for implants up to 5mm in diameter for placement. Labs should follow a diagram presented. Here are the critical dimensions:
| ID | 5.1mm |
| OD | 5.9mm |
| Height | 6.0mm |
| Lip | 0.5mm of total height |
| OD w/Lip | 6.5mm |
Pack: 1pcs or 5pcs. Priced per piece.
Cat No: 3612
$ 450.00

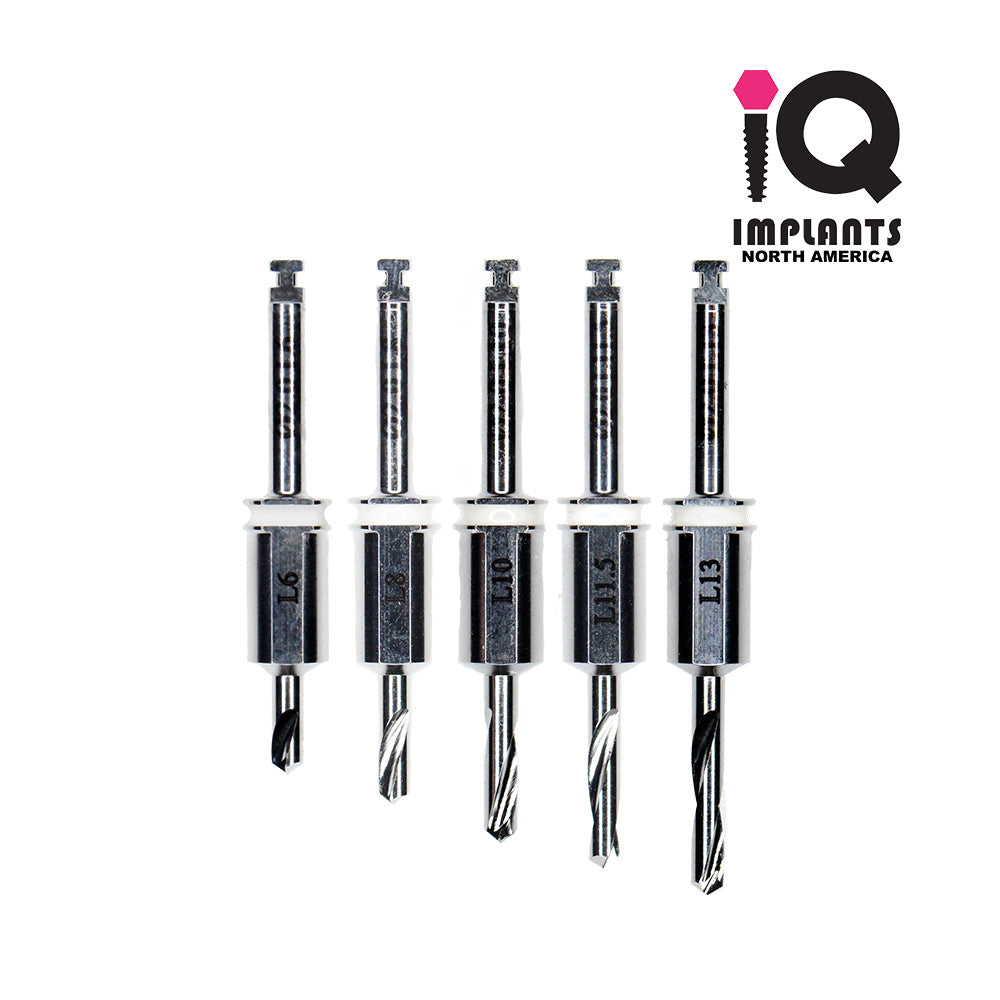

Guided surgery replacement set of 5 guided drills in 2.0mm diameter.
Labs please refer to the presented drill diagram for surgical guide design.
Set includes following drills and specs:
| ITEM | ØD | L1 | L |
| 2.0mm x 6mm | 2.0 | 6.0 | 30.5 |
| 2.0mm x 8mm | 2.0 | 8.0 | 32.5 |
| 2.0mm x 10mm | 2.0 | 10.0 | 34.5 |
| 2.0mm x 11.5mm | 2.0 | 11.5 | 36.0 |
| 2.0mm x 13mm | 2.0 | 13.0 | 37.5 |
Pack: 1 Set of 5 drills
Cat No: 1120-20
$ 450.00

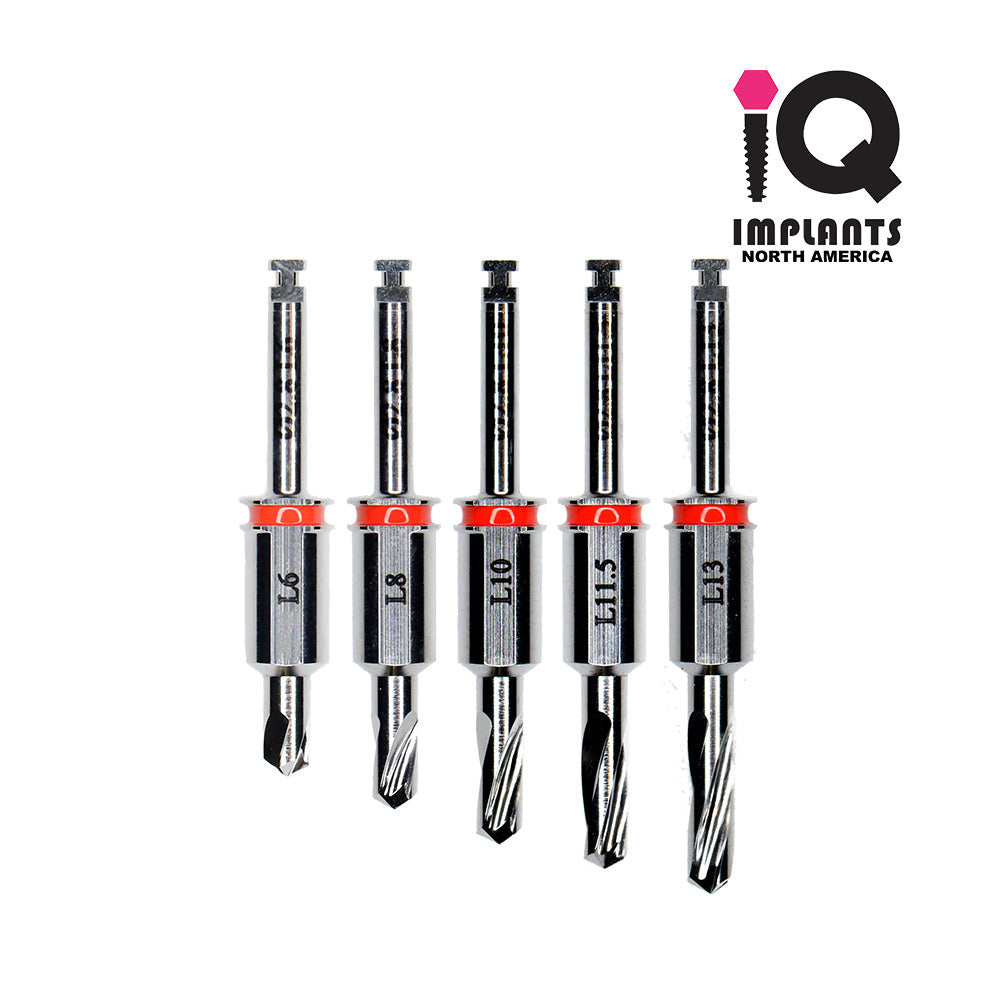

Guided surgery replacement set of 5 guided drills in 2.8mm diameter.
Labs please refer to the presented drill diagram for surgical guide design.
Set includes following drills and specs:
| ITEM | ØD | L1 | L |
| 2.8mm x 6mm | 2.8 | 6.0 | 30.5 |
| 2.8mm x 8mm | 2.8 | 8.0 | 32.5 |
| 2.8mm x 10mm | 2.8 | 10.0 | 34.5 |
| 2.8mm x 11.5mm | 2.8 | 11.5 | 36.0 |
| 2.8mm x 13mm | 2.8 | 13.0 | 37.5 |
Pack: 1 Set of 5 drills
Cat No: 1120-28
$ 450.00

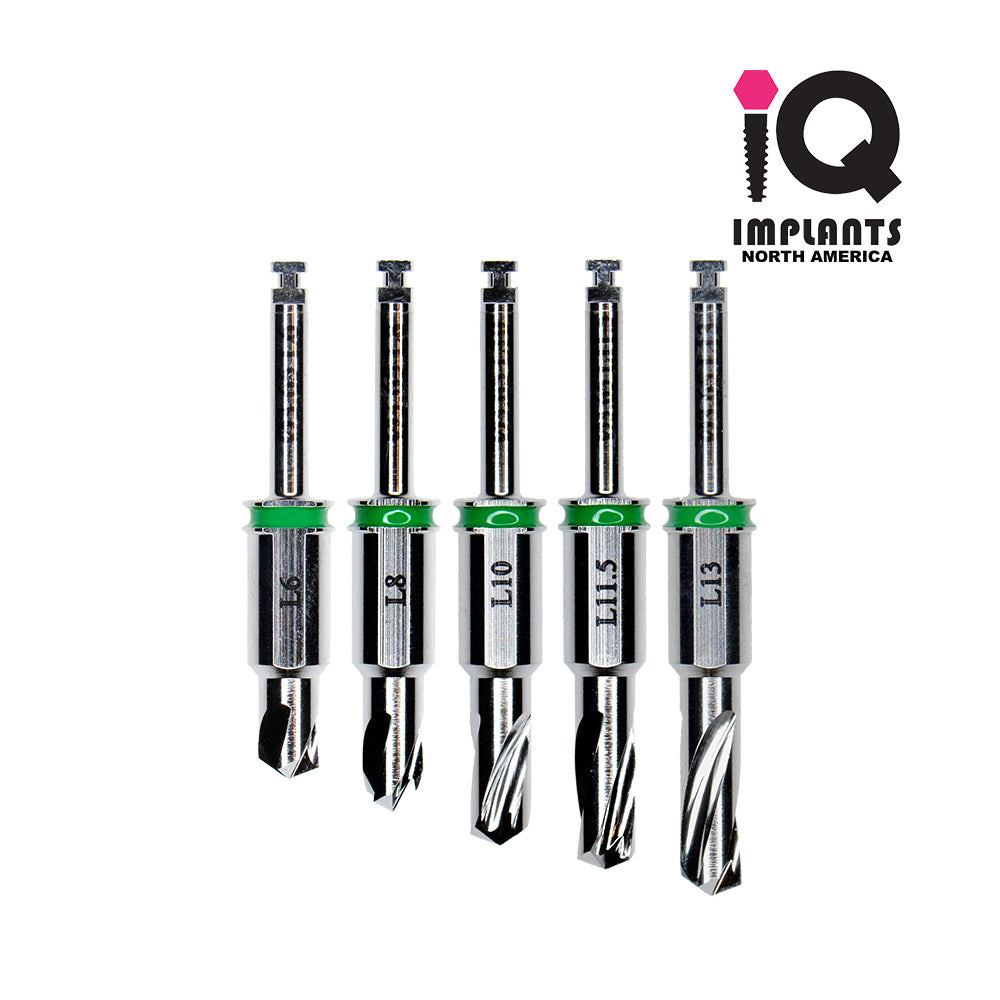

Guided surgery replacement set of 5 guided drills in 3.2mm diameter.
Labs please refer to the presented drill diagram for surgical guide design.
Set includes following drills and specs:
| ITEM | ØD | L1 | L |
| 3.2mm x 6mm | 3.2 | 6.0 | 30.5 |
| 3.2mm x 8mm | 3.2 | 8.0 | 32.5 |
| 3.2mm x 10mm | 3.2 | 10.0 | 34.5 |
| 3.2mm x 11.5mm | 3.2 | 11.5 | 36.0 |
| 3.2mm x 13mm | 3.2 | 13.0 | 37.5 |
Pack: 1 Set of 5 drills
Cat No: 1120-32
$ 450.00

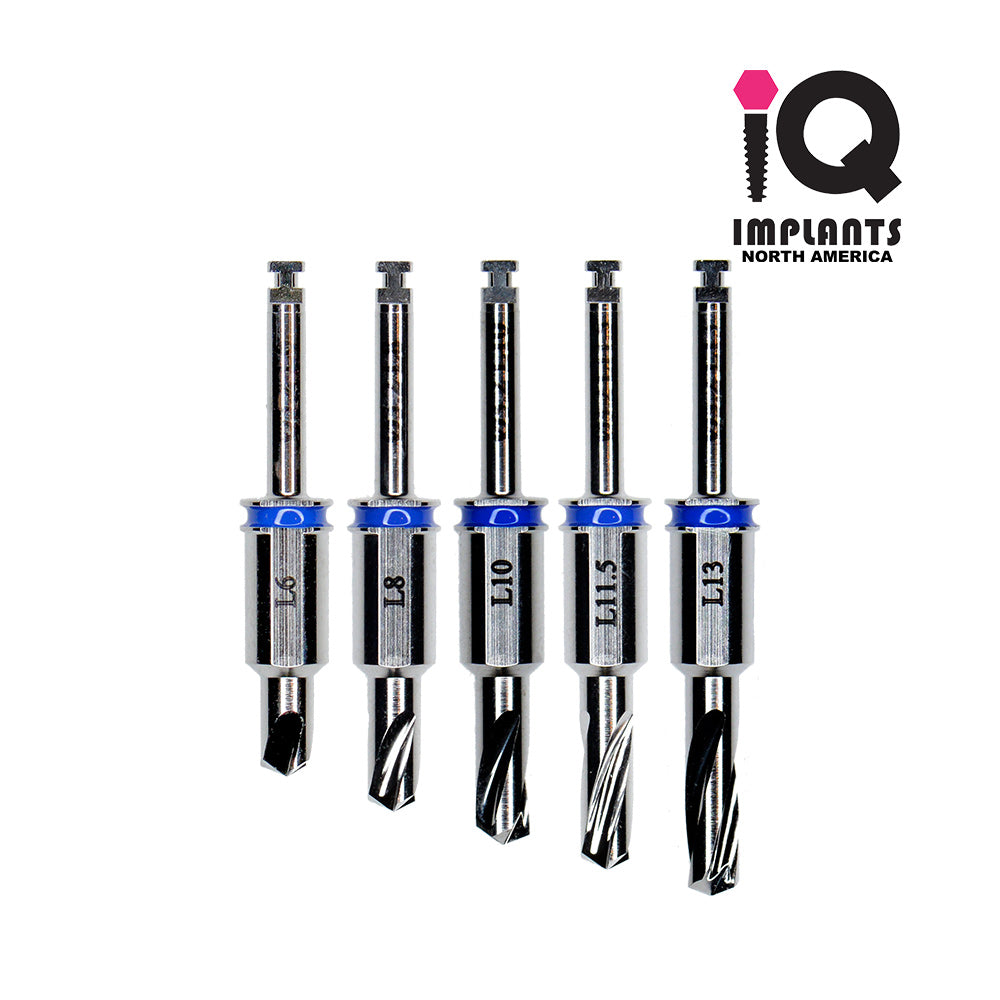

Guided surgery replacement set of 5 guided drills in 3.65mm diameter.
Labs please refer to the presented drill diagram for surgical guide design.
Set includes following drills and specs:
| ITEM | ØD | L1 | L |
| 3.65mm x 6mm | 3.65 | 6.0 | 30.5 |
| 3.65mm x 8mm | 3.65 | 8.0 | 32.5 |
| 3.65mm x 10mm | 3.65 | 10.0 | 34.5 |
| 3.65mm x 11.5mm | 3.65 | 11.5 | 36.0 |
| 3.65mm x 13mm | 3.65 | 13.0 | 37.5 |
Pack: 1 Set of 5 drills
Cat No: 1120-365
$ 450.00
Guided surgery replacement set of 5 guided drills in 4.0mm diameter.
Labs please refer to the presented drill diagram for surgical guide design.
Set includes following drills and specs:
| ITEM | ØD | L1 | L |
| 4.0mm x 6mm | 4.0 | 6.0 | 30.5 |
| 4.0mm x 8mm | 4.0 | 8.0 | 32.5 |
| 4.0mm x 10mm | 4.0 | 10.0 | 34.5 |
| 4.0mm x 11.5mm | 4.0 | 11.5 | 36.0 |
| 4.0mm x 13mm | 4.0 | 13.0 | 37.5 |
Pack: 1 Set of 5 drills
Cat No: 1120-40
$ 450.00

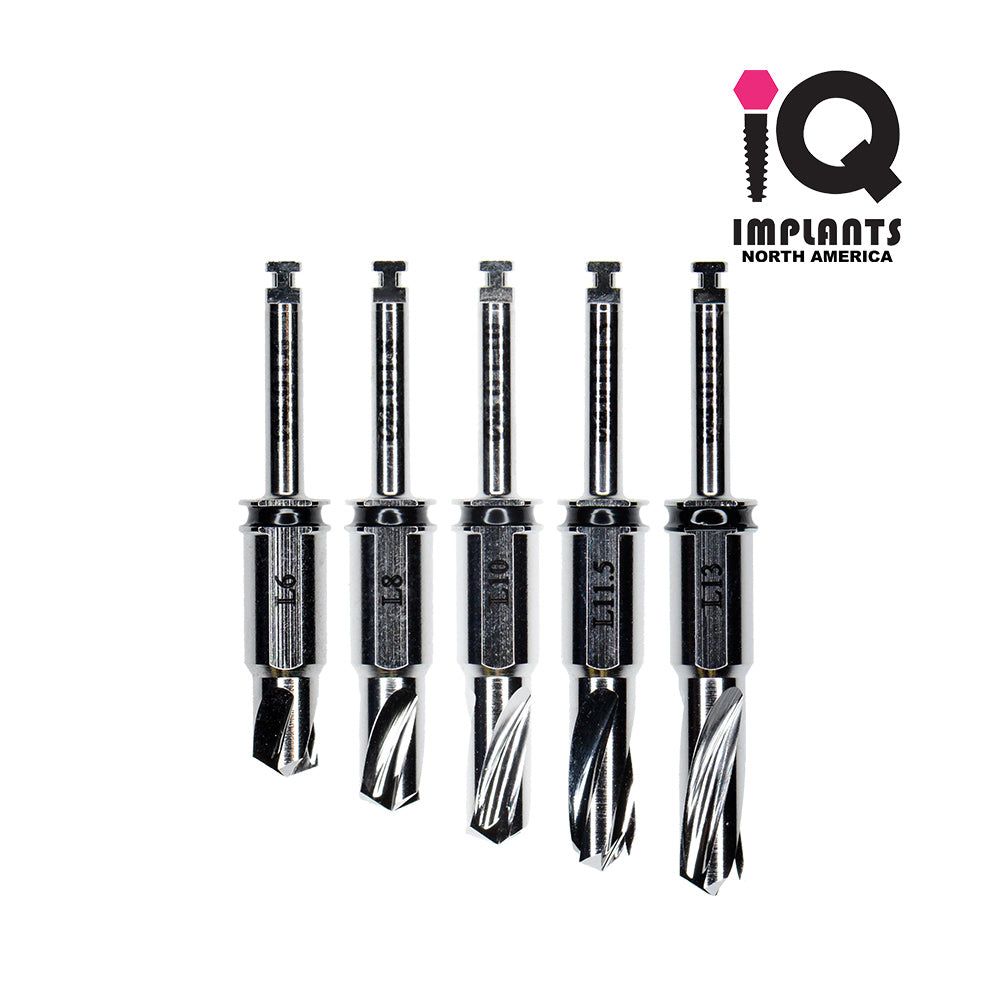

Guided Surgery Kit optional set of 5 guided drills in 4.5mm diameter. This set will allow for placement of implants up to 5mm in diameter. Special price for Optional Upgrade with the purchase of the Guided Surgery Kit.

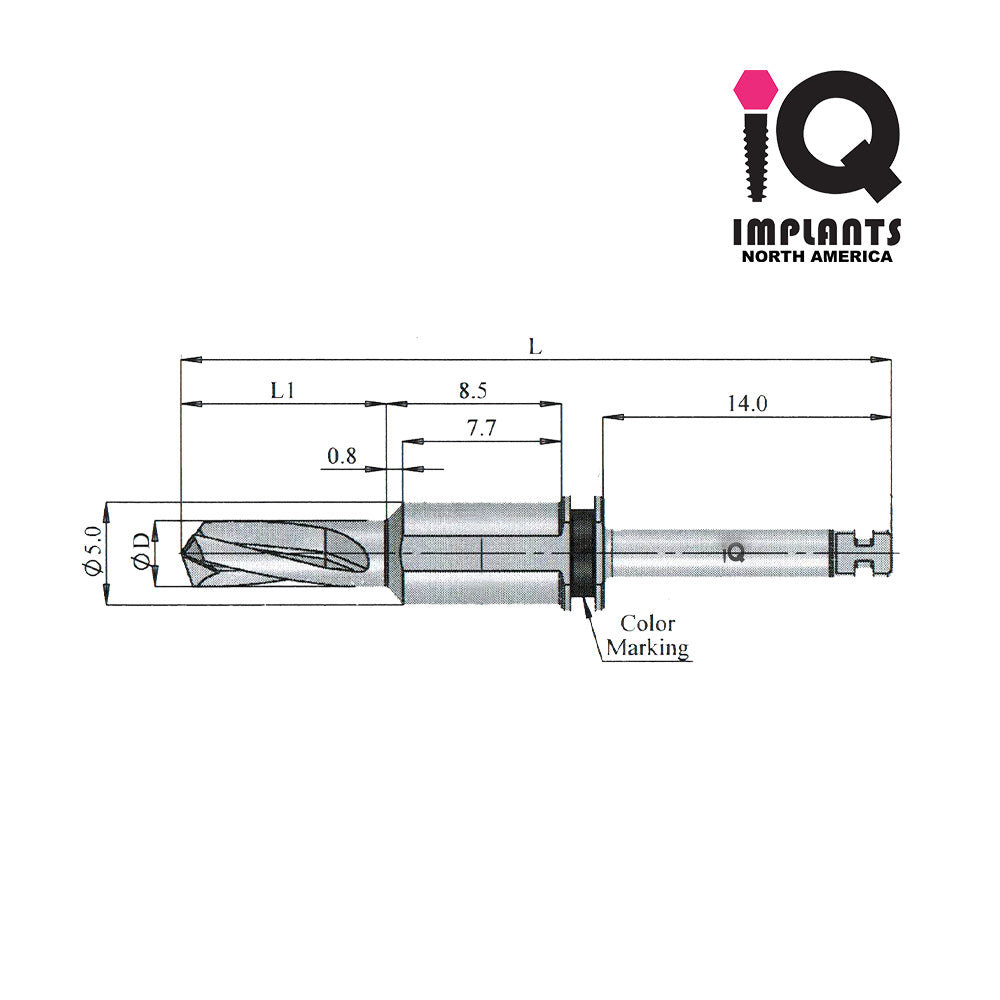

Labs please refer to the presented drill diagram for surgical guide design.
Set includes following drills and specs:
| ITEM | ØD | L1 | L |
| 4.5mm x 6mm | 4.5 | 6.0 | 30.5 |
| 4.5mm x 8mm | 4.5 | 8.0 | 32.5 |
| 4.5mm x 10mm | 4.5 | 10.0 | 34.5 |
| 4.5mm x 11.5mm | 4.5 | 11.5 | 36.0 |
| 4.5mm x 13mm | 4.5 | 13.0 | 37.5 |
Pack: 1 Set of 5 drills
Cat No: 1120-45
Please make correct choice when ordering: Replacement or Upgrade. Upgrade is a one time special price and could only be used with required purchase of Guided Surgical Kit.
