Sold Out
Autoclavable Box with Externally Irrigated Implant Drills featuring integrated stoppers..
This kit comes with 30 drills.
The Safe Drills Kit is designed to simplify the drilling process and save chair time for you and your patients. Each drill contains stopper that prevent over-drilling, reducing the potential for sinus or nerve complications during osteotomies . The system eliminates the need to carefully follow drill depth markings and for frequent pauses to examine osteotomy depth. You’ll drill safely to the exact depth that you need, with zero mistakes. Our kit contains a separate drill for each diameter and length of implants. The drills are multiple use and color-coded. Safe Drills Kit is cost-effective, user-friendly and uniquely compatible with any implant system.
Safe Drills Kit including following tools:
| Drill with Integral Stoppers | ||
| Diameter | L | Cat.no. |
| 2 | 6 | 4711 |
| 2 | 8 | 4712 |
| 2 | 10 | 4713 |
| 2 | 11.5 | 4714 |
| 2 | 13 | 4715 |
| 2.5 | 6 | 4721 |
| 2.5 | 8 | 4722 |
| 2.5 | 10 | 4723 |
| 2.5 | 11.5 | 4724 |
| 2.5 | 13 | 4725 |
| 3.2 | 6 | 4731 |
| 3.2 | 8 | 4732 |
| 3.2 | 10 | 4733 |
| 3.2 | 11.5 | 4734 |
| 3.2 | 13 | 4735 |
| 3.65 | 6 | 4741 |
| 3.65 | 8 | 4742 |
| 3.65 | 10 | 4743 |
| 3.65 | 11.5 | 4744 |
| 3.65 | 13 | 4745 |
| 4.2 | 6 | 4751 |
| 4.2 | 8 | 4752 |
| 4.2 | 10 | 4753 |
| 4.2 | 11.5 | 4754 |
| 4.2 | 13 | 4755 |
| Externally Irrigated Drill | ||
| Externally Irrigated Drill Ø 2.00 mm | 4031 | |
| Externally Irrigated Drill Ø 2.50 mm | 4032 | |
| Externally Irrigated Drill Ø 3.20 mm | 4034 | |
| Externally Irrigated Drill Ø 3.65 mm | 4035 | |
| Externally Irrigated Drill Ø 4.20 mm | 4036 | |
Box may be sterilized in autoclave.
Catalog No: 1118K
$ 439.00 $ 640.00
Autoclave Box with Externally Irrigated Implant Drills.
This kit comes with 10 drills.
You can choose any drills from all available sizes:
2.0, 2.5, 2.8, 3.2, 3.65, 4.2, 4.5, 4.8, 5.2 and 5.5mm.
All drills feature depth markings for accurate drilling at 6, 8, 10, 11.5, 13 and 16mm.
Box may be sterilized in autoclave.
Catalog No: 1124
Sold Out
Special Essential Kit of 7 Straight Short (30.5mm) Implant Drills with External Irrigation in Autoclavable Box.
Diameter of all the drills are color coded : 2.0/2.5/2.8/3.2/3.8/4.2/5.2mm.
Depth marking on the drills for accurate drilling: 6/8/10/11.5/13mm.
Straight implant drills are suitable for any implants system.
Cat No: 1113KSH-SP
$ 2,549.00 $ 2,900.00
We started from a scratch designing a kit that could abolish dependency on specific overpriced systems, while simplifying the whole process of the guided surgery.
Presenting The Guided Surgery Kit designed to be universally compatible with most implant systems. Featuring 25 specially constructed high precision drills in addition to Pilot Drill, Tissue Punch, Bone Crest Flattening Drill and beautifully constructed compact autoclavable cassette.
The kit uses only 1 (one) size sleeves of ID-5.1mm/OD-5.9mm (sold separately), which could be installed in any surgical guide with 6mm holes, suitable for most current bone-level implant systems. The magic is in its simplicity - any dentist, any lab and for any implants system. This kit is designed for implants up to 4.5mm in diameter. Could be upgraded at any time with a set of 5 drills to increase allowable implants diameters to 5.0mm.
The Guided Surgical Kit consists of the following components:
| 5 Guided Drills Set 2.00mm | Stops at 6, 8, 10, 11.5 ,13mm |
| 5 Guided Drills Set 2.80mm | Stops at 6, 8, 10, 11.5 ,13mm |
| 5 Guided Drills Set 3.20mm | Stops at 6, 8, 10, 11.5 ,13mm |
| 5 Guided Drills Set 3.65mm | Stops at 6, 8, 10, 11.5 ,13mm |
| 5 Guided Drills Set 4.00mm | Stops at 6, 8, 10, 11.5, 13mm |
| 1 Bone Crest Flattening Bur | 5.0mm Diameter |
| 1 Tissue Punch | 5.0mm Diameter |
| 1 Pilot Drill | 1.5mm Diameter |
| 1 Guided Kit Cassette | |
| OPTIONAL | sold separately |
| 5 Guided Drills Set 4.50mm | Stops at 6, 8, 10, 11.5, 13mm |
Cat No: 1120K
$ 399.00 $ 475.00

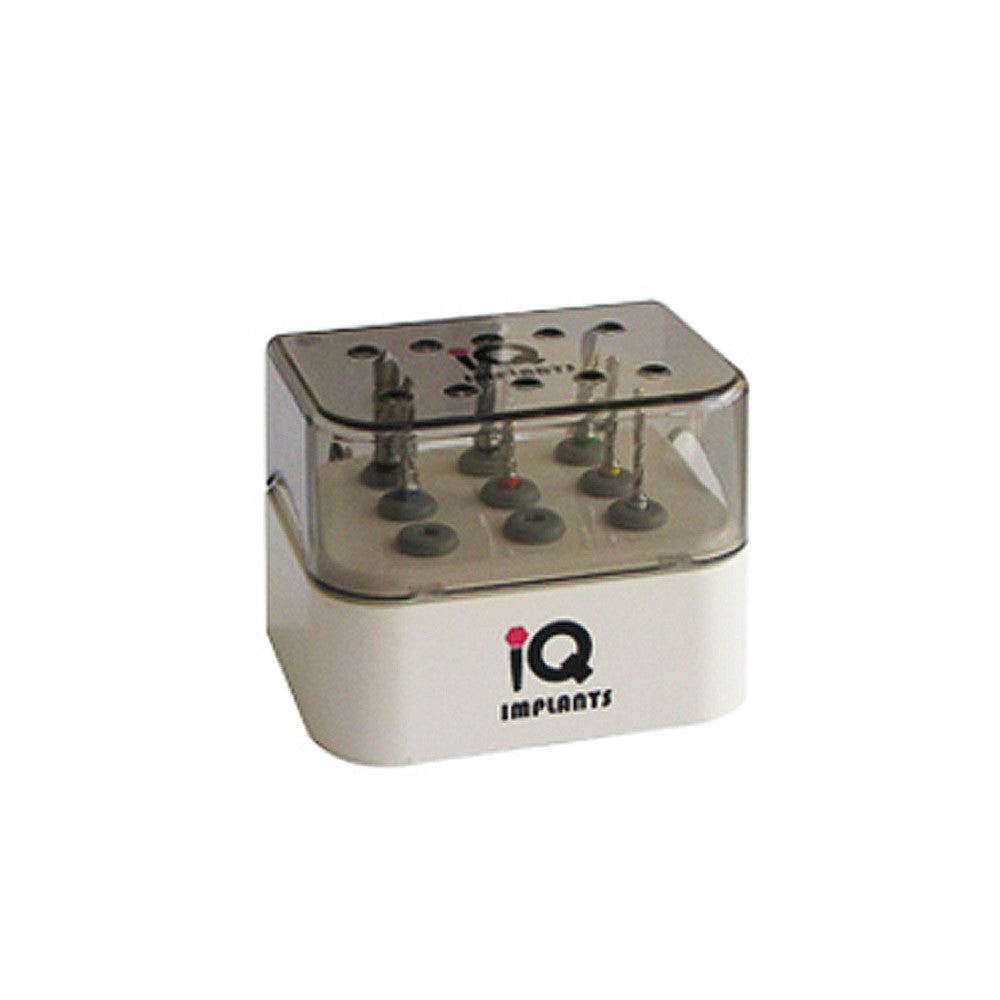

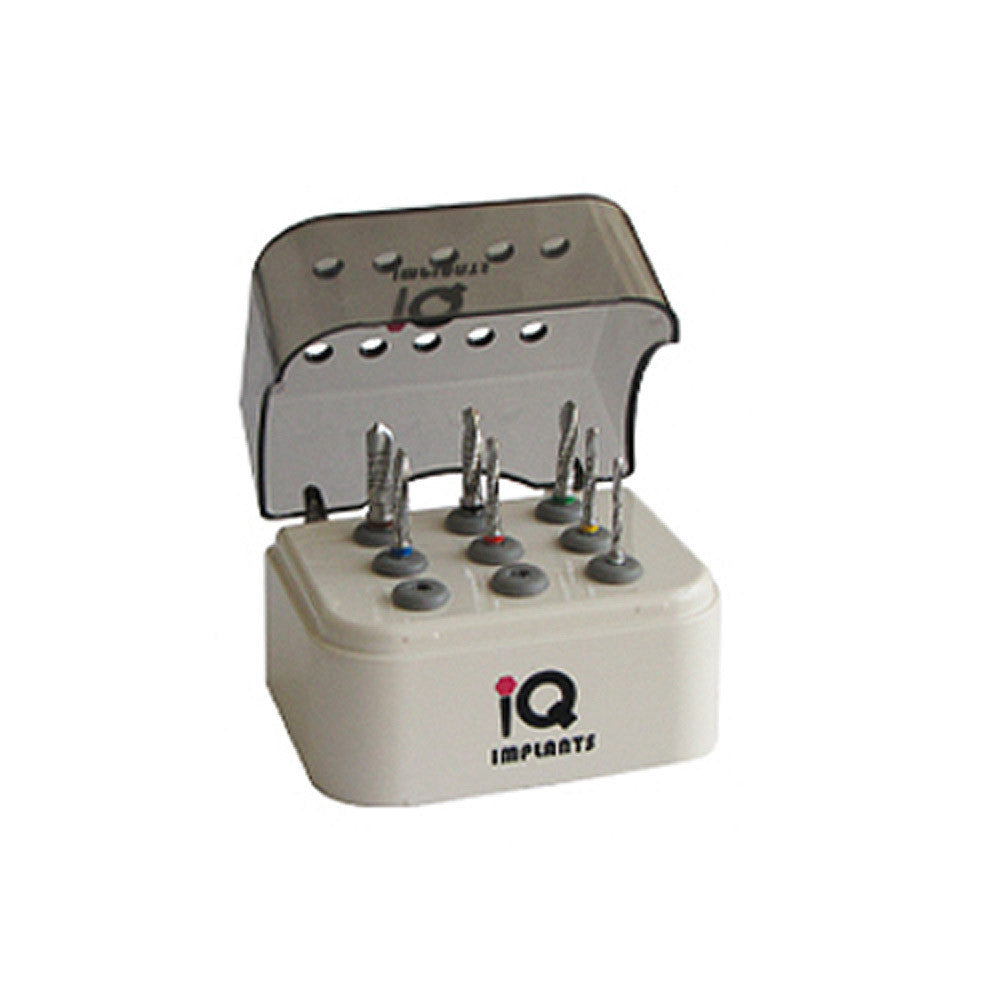

Set of 7 Externally Irrigated Implant Drills with autoclave box.
This kit comes with 7 drills: 2.0, 2.5, 2.8, 3.2, 3.65, 4.2 and 5.2mm.
All drills feature depth markings for accurate drilling at 6, 8, 10, 11.5, 13 and 16mm.
Box may be sterilized in autoclave.
Catalog No: 1123
$ 579.00 $ 770.00
Autoclave Box for sterilization with 14 Externally Irrigated Implant Drills.
Kit comes with 7 standard and 7 short implant drills.
7 Standard Drills Externally Irrigated diameters: 2.0 - 2.5 - 2.8 - 3.2 - 3.65 - 4.2 and 5.2mm
7 Short Drills Externally Irrigated diameters: 2.0 - 2.5 - 2.8 - 3.2 - 3.65 - 4.2 and 5.2mm
Diameter of all the drills are color coded.
All drills feature depth markings for accurate drilling.
Standard drills are marked at 6, 8, 10, 11.5, 13 and 16mm.
Short drills are marked at 6, 8, 10mm.
Catalog No: 1125
$ 389.00 $ 475.00
Kit consists of 7 Coated Twist Implant Drills with External Irrigation in Autoclave Box.
Diameter of all the drills are color coded : 2.0 - 2.5 - 2.8 - 3.2 - 3.65 - 4.2 and 5.2mm. Depth marking on the drills for accurate drilling : 6 - 8 - 10 - 11.5 - 13 & 16mm.
